ALPHA WIRE 470415CYCL033 Control Cable

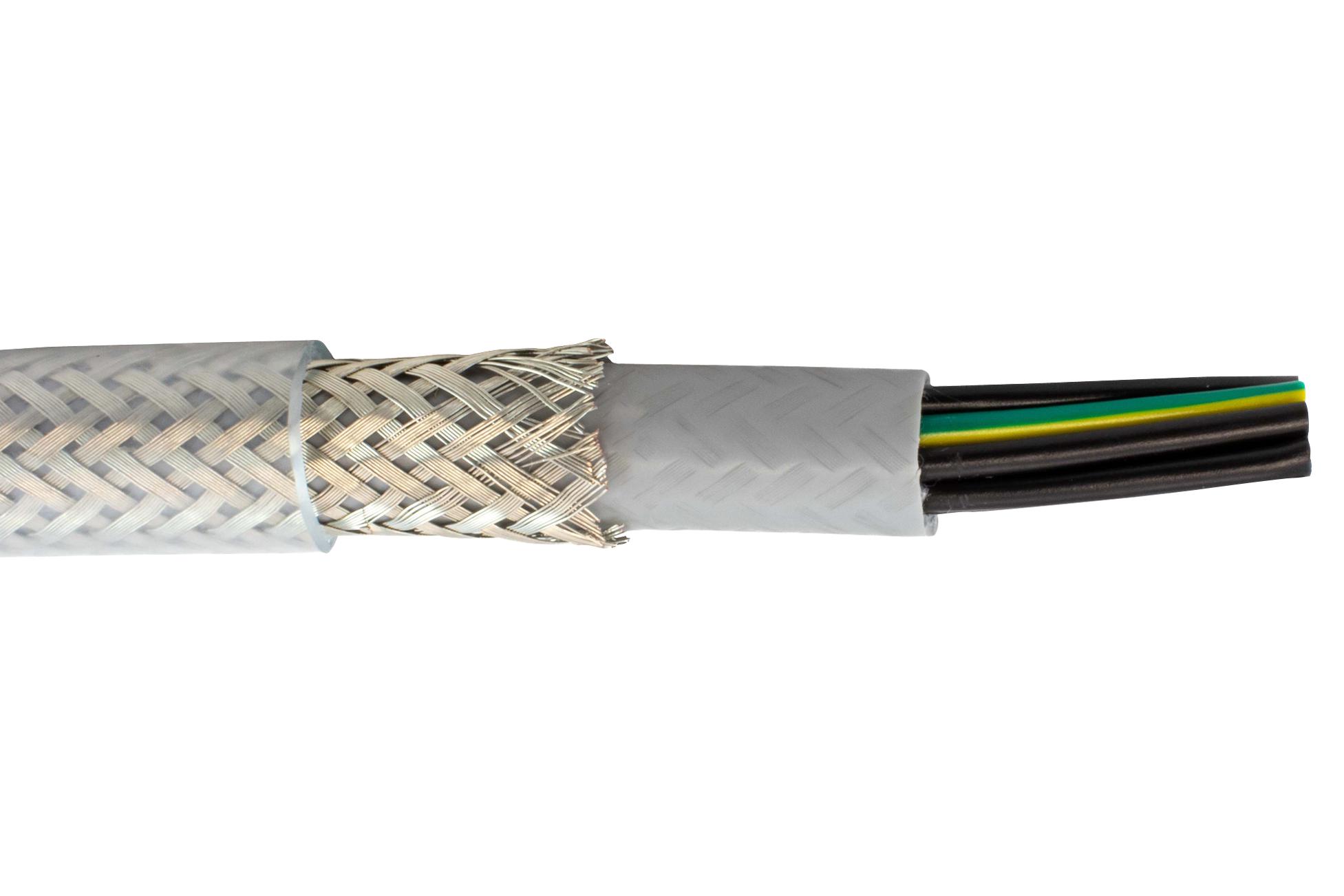

Pro-Met shielded flexible control cable designed for harsh environments, featuring four 15 AWG stranded bare copper conductors, a tinned copper braid shield with 80% coverage, and a transparent PVC outer jacket. It is oil, UV, and chemical resistant, suitable for food and beverage, medical, industrial automation, automotive, aerospace, and control applications. Rated for up to 1 million flex cycles, it withstands temperatures from -40°C to +80°C (static) and -30°C to +70°C (dynamic). The cable's bend radius is 20× the outer diameter for flexible use and 6× for fixed installations, making it versatile and durable.
ALPHA WIRE 470415CYCL033 Control Cable Specifications:
- Conductor: 15 AWG stranded bare copper
- Shield: Tinned copper braid, 80% coverage
- Jacket: Transparent PVC, oil, UV, and chemical resistant
- Temperature Range: -40°C to +80°C (static), -30°C to +70°C (dynamic)
- Bend Radius: 20× outer diameter (occasional movement), 6× outer diameter (fixed)
- Rated Flex Cycles: Up to 1 million
- Environmental Resistance: UV, oil, chemical
- Build: 4 stranded conductors with overall shielding and outer jacket
- Application: Control, automation, industrial machinery, aerospace, medical, automotive
- Dimensions: Outer diameter varies, flexible for industrial environments
- Installation: Suitable for fixed and dynamic applications
Buy the Alpha Wire Series Pro-Met Shielded Control Cable: 470415CY
Order the Alpha Wire control cable 470415CY online today for reliable performance in demanding industrial and automation environments. Designed with four 15 AWG stranded bare copper conductors, a tinned copper braid shield, and a transparent PVC outer jacket, this cable offers excellent resistance to oils, UV, and chemicals. Rated for up to 1 million flex cycles, it performs effectively from -40°C to +80°C, making it ideal for control panels, machine tools, automotive, aerospace, and medical applications. Purchase now for high durability and flexible installation.
Get Alpha Wire 470415CY today—built for precision, durability, and harsh environments with high flex cycle capability.
Frequently Asked Questions
Where can I buy ALPHA WIRE 470415CYCL033?
You can click on the BUY or RFQ button to purchase 470415CYCL033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 470415CYCL033?
You can download the 470415CYCL033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 470415CYCL033?
ALPHA WIRE
