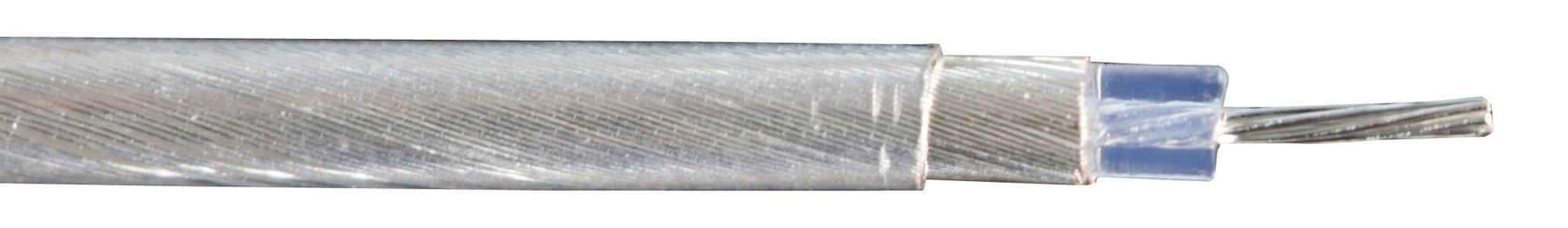

ALPHA WIRE 9436WH033 Coaxial Cable
Flexible, low-capacitance coaxial cable designed for high-frequency data transmission with 90% spiral copper shield and PFA insulation. Suitable for electronic applications requiring stable impedance, high voltage ratings, and excellent environmental compliance, including RoHS and REACH standards. Its durable construction ensures optimal performance with a maximum voltage of 30 V and a characteristic impedance of 500 ±5 Ohms. The cable features a white jacket and tinned copper conductor, making it ideal for precise, reliable wiring in complex electronic systems.
ALPHA WIRE 9436WH033 Coaxial Cable Specifications:
- Conductor: 36 (7/44) AWG Tinned Copper
- Insulation Wall Thickness: 0.0045 inches, PFA material
- Jacket Wall Thickness: 0.0018 inches, PFA material
- Conductor Diameter: 1X1 COAX
- Voltage Rating: 30 V
- Characteristic Impedance: 500 ±5 Ohms
- Ground Capacitance: 33.6 pF/ft @ 1 kHz
- Velocity of Propagation: 69%
- Maximum Attenuation: 7.6 dB/100ft @ 10 MHz
- Maximum Conductor DC Resistance: 478.2 Ω/1000ft @ 20°C
- Operating Temperature Range: -70°C to +150°C
- Bend Radius: 10X Cable Diameter
- Package Length: 328 FT on spool (dimensions vary slightly)
- Environmental Compliance: RoHS 2, REACH, UL Listed
- Applicable Standards: CE Low Voltage Directive 2006/95/EC
Buy the Alpha Wire Series Coaxial Cable: 9436WH033
Order the Alpha Wire 9436WH033 coaxial cable online today and ensure high-performance signal integrity for your electronic systems. This durable cable features a flexible design with Tinned Copper conductors, PFA insulation, and a durable white jacket, making it suitable for complex installations. It offers a characteristic impedance of 500 Ohms, maximum voltage of 30 V, and excellent environmental compliance including RoHS and REACH certifications. Whether for connectivity in aerospace, industrial, or communication equipment, this high-quality coaxial cable guarantees reliable, interference-free operation and easy installation, perfectly matching your demanding technical needs.
Buy Alpha Wire 9436WH033 coaxial cable now and experience unmatched reliability and performance in high-frequency data transmission for electronic applications.
Frequently Asked Questions
Where can I buy ALPHA WIRE 9436WH033?
You can click on the BUY or RFQ button to purchase 9436WH033 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 9436WH033?
You can download the 9436WH033 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 9436WH033?
ALPHA WIRE
