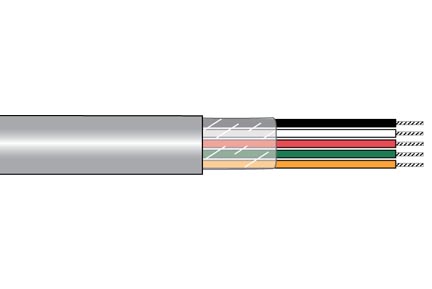

ALPHA WIRE M33502SL001 18 AWG 2C PVC Cable
The ALPHA WIRE M33502 SL001 is a multi-conductor cable designed for a variety of industrial and commercial applications. This cable features 18 AWG stranded conductors, providing excellent conductivity and flexibility. The PVC insulation offers good protection against abrasion and chemicals, while the slate jacket provides a durable outer layer. It is RoHS compliant, meeting environmental standards. This cable is suitable for power cords, signal transmission, and general wiring in appliances, electronics, and machinery.
ALPHA WIRE M33502SL001 18 AWG 2C PVC Cable Specifications:
- Conductor AWG: 18 (16/30) AWG TC
- Insulation Wall Thickness: 0.016" Nom. PVC
- Color Code: Alpha Wire Color Code D (Black, Red)
- Twists per Foot: 5.3 Twists/foot (min)
- Jacket Wall Thickness: 0.020" Nom. PVC
- Jacket Color: SLATE
- Print: ALPHA WIRE-* P/N M33502 2C 18 AWG EXXXXX 75C CMG (UL) OR AWM 2509 80C 300V C(UL) 75C CMG CE ROHS * = Factory Code
- UL Style: AWM/STYLE 2509
- UL Voltage Rating: 80°C / 300 VRMS
- UL Temperature Rating: 75°C CMG
- CSA Type: C(UL) TYPE CMG
- CSA Temperature Rating: 75°C
- Flame Rating: FT4
- CE Compliance: EU Low Voltage Directive 2006/95/EC
- Temperature Range: -20 to 80°C
- Bend Radius: 10X Cable Diameter
- Pull Tension: 25 Lbs, Maximum
- Voltage Rating: 300 VRMS
- Capacitance: 33 pf/ft @1 kHz, Nominal Conductor to Conductor
- Characteristic Impedance: 65 Ω
- Inductance: 0.18 µH/ft, Nominal
- Conductor DCR: 7.1 Ω/1000ft @20°C, Nominal
- Packaging - 1000 FT: 12 x 10 x 5 inches
- Packaging - 500 FT: 12 x 4.5 x 3.5 inches
- Packaging - 100 FT: 6.5 x 4 x 2.5 inches
- Packaging - Bulk: Made-to-order
Buy the M33502 SL001 ALPHA WIRE 18 AWG 2C PVC Cable | myMectronic
Purchase the ALPHA WIRE M33502 SL001 cable securely online and benefit from our fast and reliable shipping.
Buy Now
Frequently Asked Questions
Where can I buy ALPHA WIRE M33502SL001?
You can click on the BUY or RFQ button to purchase M33502SL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part M33502SL001?
You can download the M33502SL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of M33502SL001?
ALPHA WIRE
