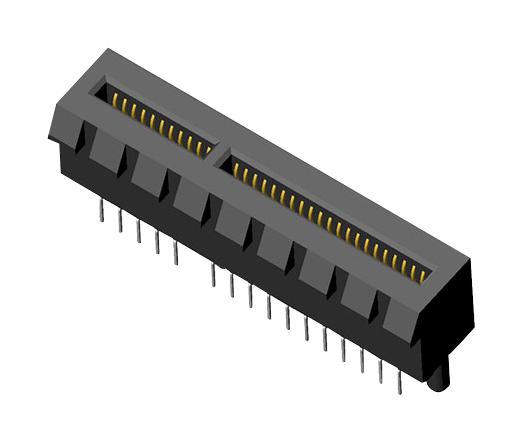

AMPHENOL COMMUNICATIONS SOLUTIONS 1001878410001TLF PCI Express Card Edge Connector
The AMPHENOL COMMUNICATIONS SOLUTIONS 10018784-10001TLF is a high-performance vertical card edge connector specifically engineered for PCI Express applications. It enables differential signaling up to 8.0Gb/s, supporting Gen1, Gen2, and Gen3 PCI Express standards. Available in x1, x4, x8, and x16 link widths, this connector caters to diverse bandwidth requirements, from single PCI Express lanes in desktop PCs to high-bandwidth applications like graphics cards in servers. Termination options include through-hole solder, press-fit, surface-mount, and straddle-mount, offering flexibility in PCB design and manufacturing. The connector's robust design and various features, such as retention mechanisms and straddle-mount options with mounting ears, ensure secure and reliable connectivity in demanding industrial and commercial environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 1001878410001TLF PCI Express Card Edge Connector Specifications:
- Contact_base_metal: Copper alloy
- Contact_area_finish: Gold over nickel
- Solder_area_finish: Tin over nickel or tin-lead over nickel
- Housing_material: High-temperature thermoplastic (UL94V-0)
- Metal_board_locks_finish: Tin over nickel or tin-lead over nickel
- Durability_rating: 50 cycles min.
- PCB_insertion_force: 1.15 N max. per contact pair
- PCB_removal_force: 0.15 N min. per contact pair
- Bandwidth: Up to 8.0Gb/s
