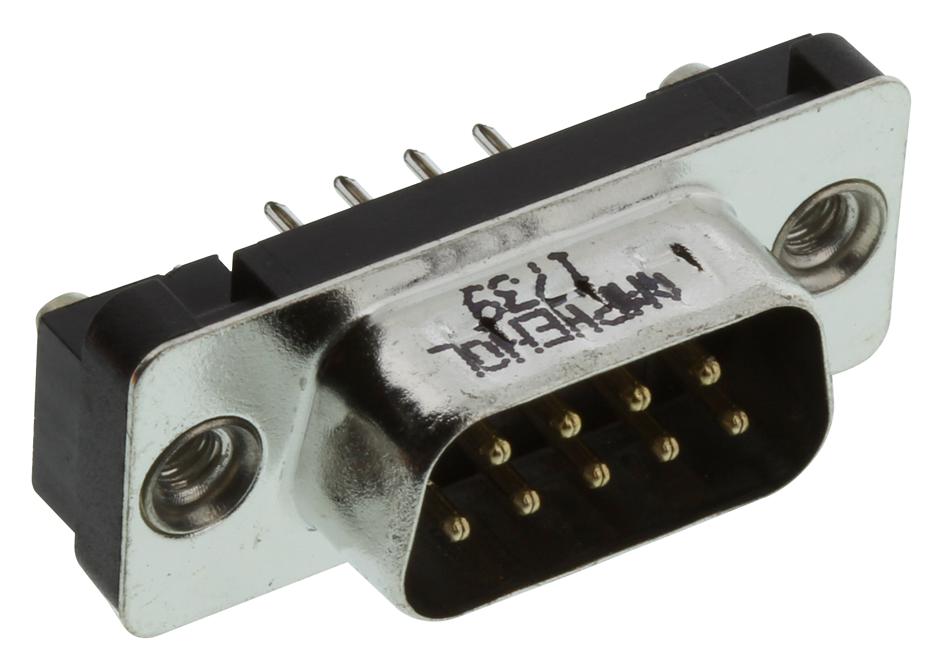

AMPHENOL COMMUNICATIONS SOLUTIONS L717TSEH09POL2RM5 D-Sub Connectors
The D-Sub connectors in the Ampheno series feature stamped and formed contacts with high standards of quality and reliability. Constructed with steel shells nickel-plated, glass-filled thermoplastic insulators, and copper alloy contacts with selective gold plating, these connectors are designed for durability and electrical performance. Suitable for PCB termination, they support currents up to 5A, voltage up to 600V AC/rms, and withstand voltages of 1000V. Operating temperature ranges from -55°C to +125°C, making them ideal for industrial and telecom applications. Available in various sizes, with optional mounting configurations, and RoHS compliant plating options.
AMPHENOL COMMUNICATIONS SOLUTIONS L717TSEH09POL2RM5 D-Sub Connectors Specifications:
- Shell Material: Steel with nickel plating
- Insulator Material: Glass-filled thermoplastic, UL 94V-0
- Contacts Material: Copper alloy, selective gold plating
- Boardlock Material: Brass with nickel plating
- Screwlock Material: Brass with nickel plating
- Current Rating: 5A
- Voltage Rating: 600V AC/rms 50Hz
- Withstanding Voltage: 1000V AC/rms for one minute
- Insulation Resistance: 5000MQ
- Contact Resistance: 10mQ max through PCB
- Operating Temperature: -55°C to +125°C
- Mating and Unmating Force: 2 + 8 kg (14.7 + 78.4 N)
- Number of Contacts: 9, 15, 25, 37
- Plating Thickness: + gold flash, + 0.4 μm (15 μ") gold, + 0.76 μm (30 μ") gold
- Overall Dimensions: Vary by size, see chart
- Mounting Options: Rear insert, threaded, front screwlock, retention clips
- RoHS Compliance: Yes
Buy the Amphenol Series Ampheno D-Sub: L717TSEH09POL2RM5
Purchase your Amphenol Series Ampheno D-Sub connectors online now and enjoy dependable performance with stamped and formed contacts. These connectors feature steel shells with nickel plating, glass-filled thermoplastic insulators, and gold-plated contacts, ensuring durability and excellent electrical conductivity. They support up to 5A, 600V AC/rms, and withstand voltage up to 1000V. Operating from -55°C to +125°C, they are suitable for industrial, telecom, and commercial applications. Various mounting and configuration options are available for your specific needs.
Order your Amphenol Series Ampheno D-Sub connector today and ensure reliable, high-quality PCB connections for industrial and telecom projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L717TSEH09POL2RM5?
You can click on the BUY or RFQ button to purchase L717TSEH09POL2RM5 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L717TSEH09POL2RM5?
You can download the L717TSEH09POL2RM5 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L717TSEH09POL2RM5?
AMPHENOL COMMUNICATIONS SOLUTIONS
