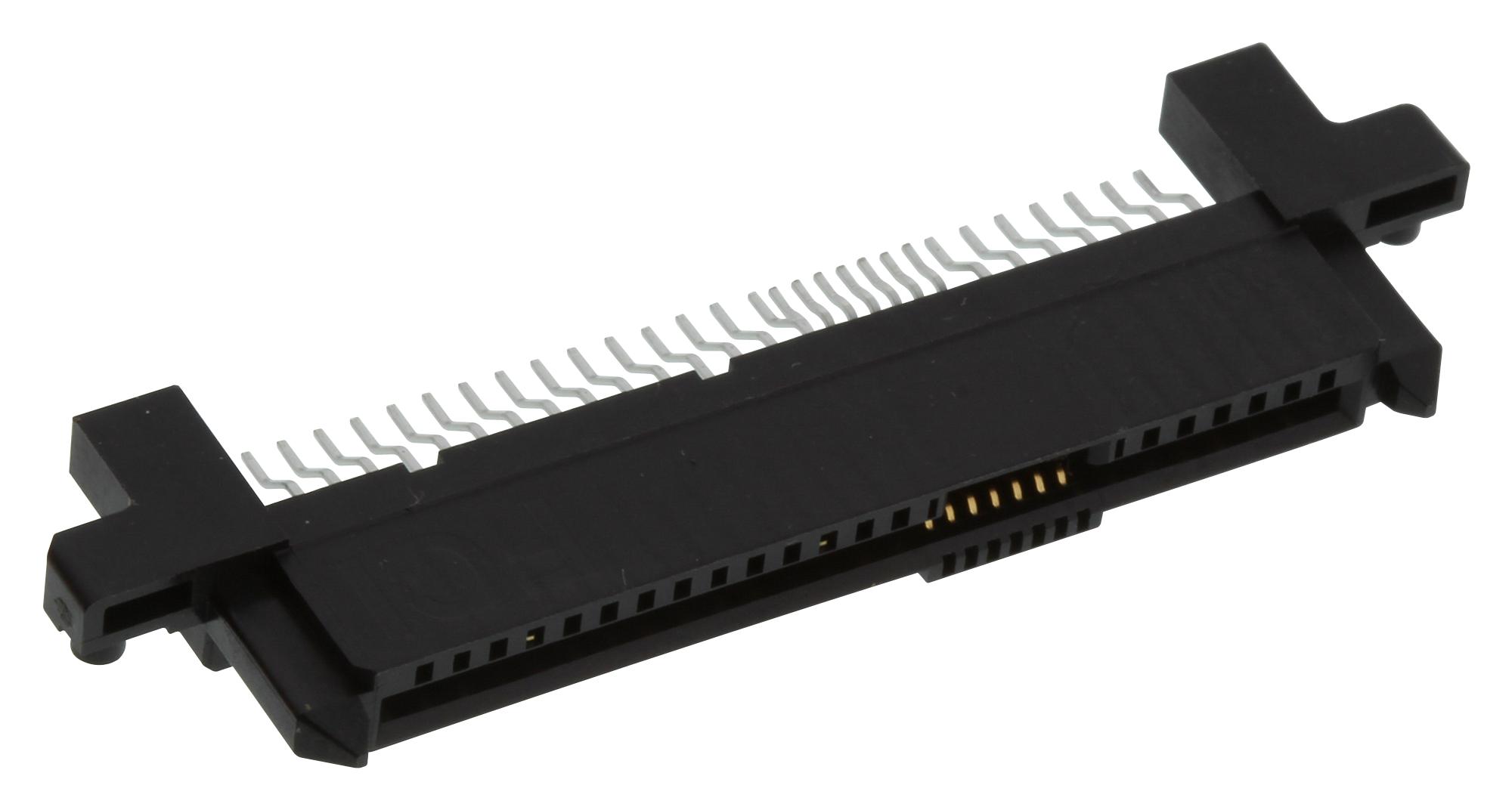

AMPHENOL COMMUNICATIONS SOLUTIONS 10035202001LF SAS Connectors
High-speed Serial Attached SCSI (SAS) connectors enable reliable, high data rate connections up to 12Gb/s for enterprise storage solutions. Suitable for server backplanes, HDD carriers, and storage blades, these connectors support hot plugging, blind mating, and differential signaling. Available in vertical and right-angle configurations with various termination options, including SMT and through-hole, they feature staggered contact lengths, molded guide posts for alignment, and robust retention clips for mechanical strength. Made from durable thermoplastic and copper alloy, these connectors ensure secure, high-performance data transmission in demanding industrial, server, and storage environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 10035202001LF SAS Connectors Specifications:
- Contact Material: Copper Alloy
- Contact Area Finish: Gold over Nickel
- Housing: High-Temperature Thermoplastic (UL94V-0)
- Electrical Resistance: 30mΩ max. initial, 15mΩ max. after testing
- Current Rating: 1.5A min. per contact
- Durability: 500 mating cycles
- Mating Force: 50 N max.
- Unmating Force: 5 N min.
- Temperature Range: -55°C to +85°C
- Environmental Tests: Humidity, Thermal Shock, Gas exposure
- Connector Types: Vertical Receptacles, Right Angle Receptacles, Headers
- Supported Speeds: 3Gb/s to 12Gb/s
- Termination Options: SMT, Through-hole, Hybrid
- Compliance: SFF-8482, UL Listed
- Size and Mounting: Various footprints and orientations for enterprise applications
Buy the Buy FCI SAS Connectors Part Number 10035202001LF Online
Experience reliable, high-performance data connections with FCI SAS connectors supporting speeds up to 12Gb/s. Perfect for server backplanes, HDD carriers, and storage blades, these robust connectors come in vertical and right-angle configurations with various termination options. Manufactured from high-quality thermoplastic and copper alloys, they feature staggered contact lengths, molded guide posts for precise alignment, and strong retention clips for mechanical stability. Designed to support demanding enterprise environments while ensuring secure, fast data transmission, these connectors are essential for modern data centers seeking durability and high throughput.
Get FCI SAS connector part number 10035202001LF today—designed for high-speed data transfer and durable performance in enterprise storage systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10035202001LF?
You can click on the BUY or RFQ button to purchase 10035202001LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10035202001LF?
You can download the 10035202001LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10035202001LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
