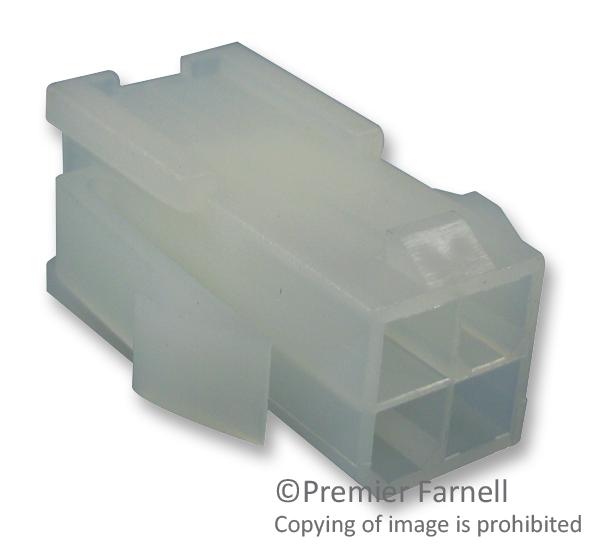

AMPHENOL COMMUNICATIONS SOLUTIONS MF42HM04 Power Wafer
The MF42HM04 power wafer features a 4.2mm pitch with a transparent white insulating body made from glass-reinforced thermoplastic, UL 94V-2, Nylon 66. Equipped with brass contacts that are tin-plated, it offers reliable electrical performance with a contact resistance of max 10 milliohms at 1A DC. It supports operating temperatures from -40°C to +105°C and has insulation resistance exceeding 1000 megaohms at 500V/DC. Rated for up to 9A current and 600V voltage, it is suitable for high-load industrial applications requiring durable and ROHS-compliant power connectors.
AMPHENOL COMMUNICATIONS SOLUTIONS MF42HM04 Power Wafer Specifications:
- Pitch: 4.2 mm
- Number of Positions: 2 to 24
- Contact Material: Brass, Tin plated
- Insulation Material: Glass-reinforced thermoplastic, UL 94V-2, Nylon 66
- Operating Temperature Range: -40°C to +105°C
- Contact Resistance: Max 10 mΩ at 1A DC
- Insulation Resistance: Min 1000 MΩ at 500V/DC
- Dielectric Withstanding Voltage: 1500 V AC/RMS 60Hz for 1 minute
- Current Rating: 9A
- Voltage Rating: 600V AC/RMS 60Hz
- Environment: Suitable for industrial applications, ROHS compliant
Buy the BrandName MF42HM04 – Reliable Power Wafer for Industrial Applications
Purchase the reliable and ROHS-compliant power wafer with 4.2mm pitch online today. Designed with durable brass contacts and glass-reinforced thermoplastic insulation, it supports high current and voltage ratings up to 9A and 600V, respectively. Operating smoothly from -40°C to +105°C, this power wafer is perfect for industrial applications requiring robust and safe electrical connections. Simply add this high-quality power connector to your cart and improve your manufacturing process with trusted components delivered promptly.
Order your BrandName Series MF42HM04 power wafer today and elevate your industrial projects with dependable, RoHS-compliant power connectors.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS MF42HM04?
You can click on the BUY or RFQ button to purchase MF42HM04 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part MF42HM04?
You can download the MF42HM04 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of MF42HM04?
AMPHENOL COMMUNICATIONS SOLUTIONS
