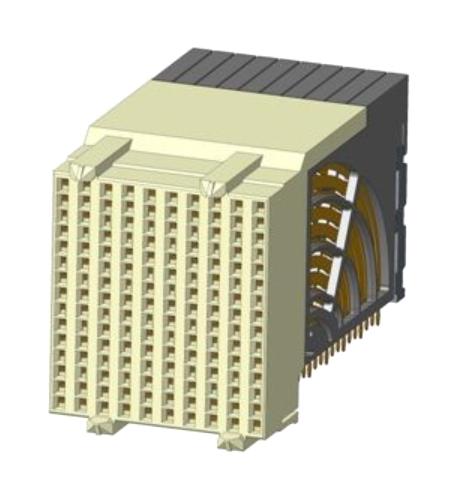

AMPHENOL COMMUNICATIONS SOLUTIONS 10155264101LF Backplane Connector System
The AirMax VSe 25GB/S Backplane Connector System from AMPHENOL COMMUNICATIONS SOLUTIONS is a next-generation connector designed for high-speed data transmission. It provides a migration path for up to 25Gb/s per differential pair while maintaining compatibility with older AirMax VS connectors. The shieldless design and closely edge-coupled differential pairs minimize signal loss and crosstalk, making it suitable for backplanes, midplanes, and coplanar applications. This system enables cost savings by allowing the use of legacy and future module cards, enhancing flexibility in equipment deployment.
AMPHENOL COMMUNICATIONS SOLUTIONS 10155264101LF Backplane Connector System Specifications:
- contacts: High performance Copper Alloy
- contact_finish: Performance-based plating
- housings: High Performance Thermoplastic, UL94-V0
- current_rating: 0.5 A/contact
- insertion_loss: see graph below
- crosstalk: see graph below
- durability: 200 cycles
- mating_force: 0.50N max./contact
- unmating_force: 0.15N min./contact
- compliant_pin_insertion_force_0.4mm_hole: 15N max.
- compliant_pin_insertion_force_0.5mm_hole: 30N max.
- contact_resistance: ≤60 mΩ initial in backplane application, ≤120 mΩ initial in coplanar application
- impedance: 100 OHMS
