AMPHENOL COMMUNICATIONS SOLUTIONS 10039851101LF Backplane Connector
The AirMax VS backplane and midplane connectors utilize innovative edge-coupling and air dielectric technology to deliver low insertion loss and minimal crosstalk. Designed for high-density, high-performance applications, these connectors support speeds up to 25Gb/s and are compatible with a wide range of system architectures including backplane, midplane, and mezzanine configurations. They feature a shieldless open pin field design, offering exceptional flexibility for complex PCB layouts, simplified supply management, and reduced system costs. Made from durable thermoplastic and copper alloy contacts, they meet industry standards for telecommunications and data storage equipment, providing reliable and scalable interconnect solutions.
AMPHENOL COMMUNICATIONS SOLUTIONS 10039851101LF Backplane Connector Specifications:
- Materials: Contacts are Copper Alloy with performance-based plating over nickel; housings are High Performance Thermoplastic, UL94V-0
- Electrical: Differential impedance typically 85 Ω or 100 + 82 Ω, insertion loss under 1.5 dB at 8Gb/s and 12.5Gb/s, crosstalk below -30 dB to -41 dB depending on speed
- Mechanical: Durability of 200 mating cycles, maximum mating force 0.45N/contact, unmating force minimum 0.15N/contact
- Environmental: Contact resistance less than 35mΩ initial, less than 10mΩ after environmental tests; current rating of 0.5A per contact
- Physical: Pitch varies, with options including 2mm and 3mm between columns; compatible with standard headers and receptacles; shieldless open pin field design for system flexibility
- Certification & Approval: Telcordia GR-1217-CORE, UL approved, suitable for telecom, storage, computing, and industrial applications
- Packaging & Application: Supplied in tubes or trays; used in switches, routers, servers, optical transmission, and industrial measurement systems

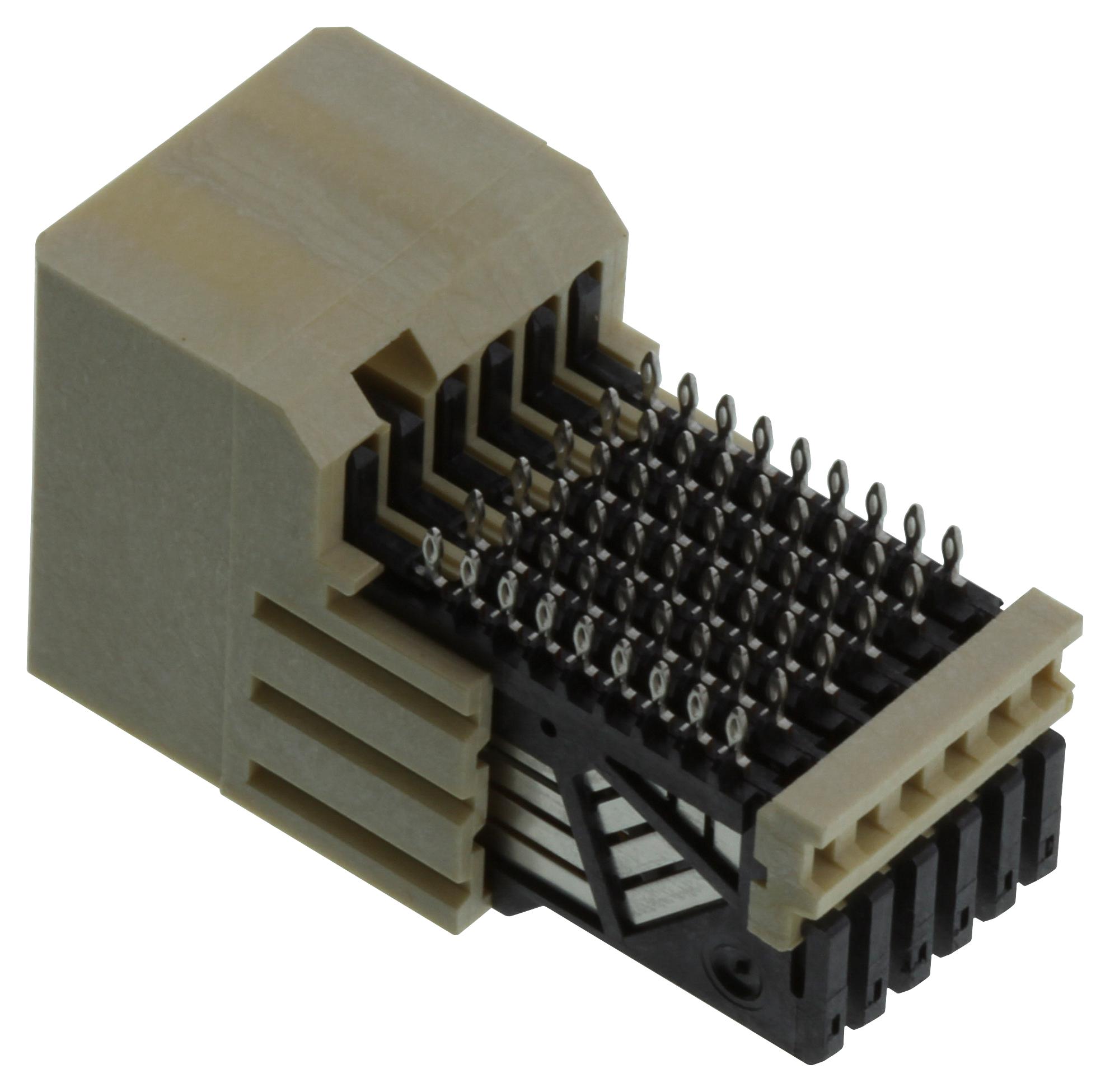

Buy the FCI Series AirMax VS Backplane Connector: 10039851101LF
Order the FCI AirMax VS backplane connectors today online for quick delivery and competitive prices. These high-density, shieldless connectors support speeds up to 25Gb/s, making them ideal for telecom, server, and industrial systems. Designed with innovative air dielectric technology, they provide low insertion loss and crosstalk, ensuring optimal electrical performance. Their flexible open pin field design allows easy mixing of signals, power, and control lines, simplifying system design. Stocked in various configurations, they ensure short lead times, reducing your project delays and technical risks. Invest now for dependable, scalable interconnect solutions tailored to your demanding applications.
Buy FCI AirMax VS backplane connectors now and experience unmatched reliability and performance with innovative open pin field design for high-density applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10039851101LF?
You can click on the BUY or RFQ button to purchase 10039851101LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10039851101LF?
You can download the 10039851101LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10039851101LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
