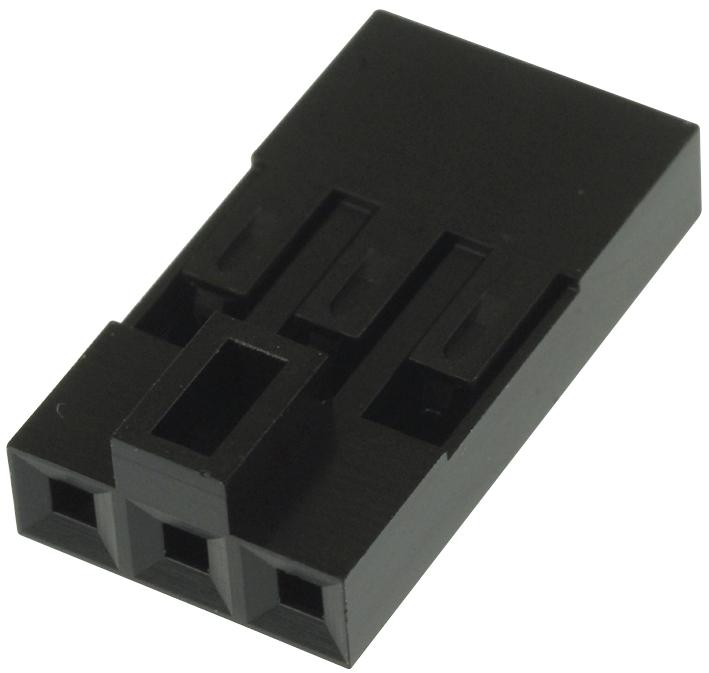

AMPHENOL COMMUNICATIONS SOLUTIONS 78211003LF Wire-to-Board Connector
The Mini-PV 78211 series crimp-to-wire connector system offers reliable dual-metal receptacle terminals compatible with industry-standard 0.025-inch posts. These high-quality terminals provide secure connections for discrete wires or multiple-circuit MINI-LATCH housings with optional polarization keys, ensuring correct mating. The printed circuit side features shrouded headers with integral friction to prevent disengagement. The dual-metal contact maintains consistent pressure over 1000 cycles, supported by a brass gas-tight crimp and a beryllium copper spring for high normal force. Additional features include retention side walls, polarization keys, and configurations in single or double rows, suitable for industrial, medical, aerospace, and automotive applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 78211003LF Wire-to-Board Connector Specifications:
- Compatible with industry-standard 0.025-inch (0.635mm) square posts
- Dual-metal PV receptacle contact maintains contact pressure over 1000 mating cycles
- Beryllium copper spring provides high normal force
- Brass contact body ensures gas-tight crimp termination
- Maximum wire diameter: 1.52mm
- Current rating: 3.0A with 32 AWG wire
- Insulation resistance: >10000MQ for wire connector, >5000MQ for header
- Withstanding voltage: 1000V RMS
- Temperature range: -40°C to +105°C
- Housing material: Modified polyphenylene oxide UL94V-0, glass-filled nylon UL94V-0
- Durability: 1000 mating cycles
- Available in single and double row configurations
- Shrouded headers with integral friction features
- Includes polarization keys to prevent mis-mating
Buy the Buy FCI Wire-to-Board Connector Part Number 78211003LF Online
Secure your electronic connections today by purchasing the FCI wire-to-board connector online. Designed for durability with over 1000 mating cycles, it features dual-metal contacts, polarization, and a range of configurations to meet industrial, automotive, and medical needs. Easy to install with reliable gas-tight crimps, these connectors are ideal for high-performance and safety-critical applications. Order now and experience trusted quality, superior performance, and seamless integration for your electronic assemblies, ensuring long-term reliability and safety across diverse industries.
Buy FCI 78211003LF wire-to-board connector now and ensure reliable, high-cycle connections for industrial, medical, or automotive applications.
