Amphenol Communications Solutions 10118241-001RLF Datasheet & Stock

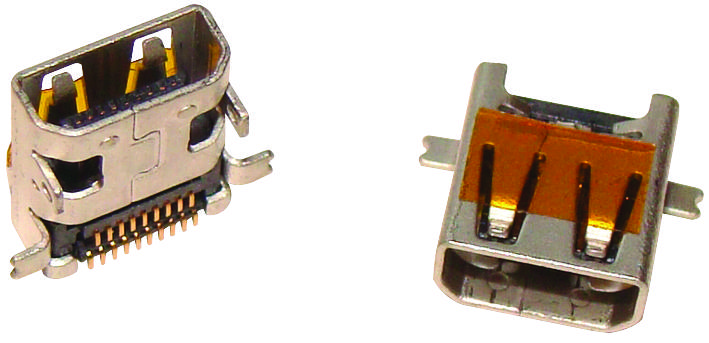

The 10118241-001RLF is a 19-position black type D right angle HDMI Receptacle with through hole hold down style. This connector has LCP housing and 15uinch gold plated copper alloy contacts. HDMI™ (High-Definition Multimedia Interface) is the next-generation interface replacing the existing DVI connector. It is commonly seen in consumer electronics products, such as digital television, DVD players and set-top boxes. HDMI™ is backwards compatible with DVI and is much smaller and more user-friendly. The connector system supports the transmission of uncompressed video and audio data along a single cable at 5Gbs. The right angle version is available with full SMT solder tails and pegs.




80μinch Tin plated shield

1u" Solder tail

Stainless Steel metal shell

Meets HDMI™ 1.4 compliance

Low impedance mismatch





Applications


Multimedia
