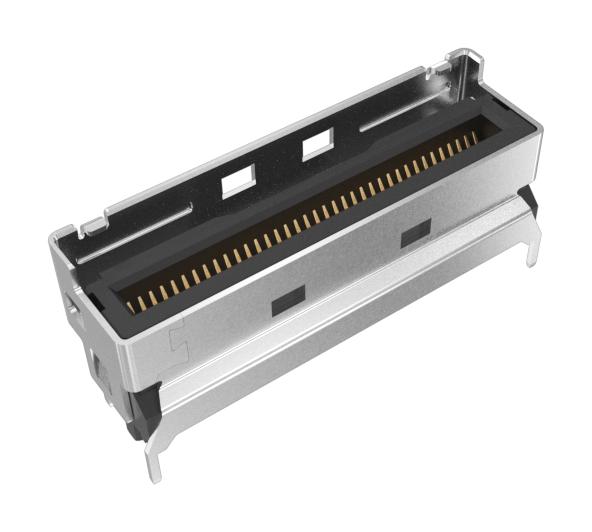

AMPHENOL COMMUNICATIONS SOLUTIONS G98V12322HR High-Speed Edge Connector
The Mini Cool Edge 10 connector is a high-speed, 0.60mm pitch interconnect designed for advanced data center and computing applications. Supporting transmission speeds up to 56G PAM4 and PCIe Gen 4/5, it features a slim form factor that allows longer signal paths with minimal signal degradation, enhancing system performance. The connector supports both cable and card edge configurations, with various pin counts and options for impedance and plating. Made with durability and thermal stability in mind, it integrates high-quality materials like copper alloy and thermoplastic housing. Its robust electrical and mechanical specs ensure reliable operation over many mating cycles and environmental conditions, making it ideal for scalable, modular high-speed systems.
AMPHENOL COMMUNICATIONS SOLUTIONS G98V12322HR High-Speed Edge Connector Specifications:
- Pitch: 0.60mm
- Support Speed: Up to 56G PAM4, PCIe Gen 4, PCIe Gen 5
- Transmission Distance: Over 1.0 meter
- Configuration: Vertical and right angle options
- Housing Material: High temperature thermoplastic (UL 94V-0)
- Contact Material: Copper alloy with gold over nickel plating
- Contact Resistance: 30mΩ max.
- Dielectric Withstanding Voltage: 300V DC
- Mechanical Durability: 250 mating cycles
- Mating Force: 0.6N per pin max.
- Unmating Force: 0.06N per pin min.
- Environmental Resistance: Humidity, thermal shock, temperature life testing compliant with industry standards
- Certifications: UL Listed
- Pin Count Options: 38, 74, 124, 50, 148, 84, 100 pins
- Impedance Options: 92Ω, 85Ω, 95Ω (optional)
- Packaging: Tape & Reel, carrier tape
- Housing & Spacer: Durable thermoplastic
- Shorting Bar: Conductive plastic
- Cage Material: Nickel-plated stainless steel
Buy the Amphenol G98V12322HR – Reliable High-Speed Interconnect for Industrial Applications
Experience superior high-speed data connectivity with the Amphenol Mini Cool Edge 10 connector designed for scalable and modular high-performance systems. Supporting up to 56G PAM4 and PCIe Gen 4/5, it offers a slim profile and versatile configurations for cable and card edge applications. Made with durable materials like copper alloy and thermoplastic, it ensures long-term reliability and excellent signal integrity. Perfect for data centers, high-end computing, and networking, order online today and secure a dependable, high-speed interconnection solution for your critical projects.
Order your Amphenol Series G98V12322HR high-speed connector today and ensure your systems benefit from scalable, ultra-reliable data transmission performance.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS G98V12322HR?
You can click on the BUY or RFQ button to purchase G98V12322HR from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part G98V12322HR?
You can download the G98V12322HR datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of G98V12322HR?
AMPHENOL COMMUNICATIONS SOLUTIONS
