AMPHENOL COMMUNICATIONS SOLUTIONS 10123529102LF High-Speed Backplane Connector
The AirMax VS2 backplane connector system offers a high-speed migration path up to 20Gb/s per differential pair, ideal for advanced data communication, switching, and server applications. Featuring a shieldless design with closely coupled differential pairs, it ensures low crosstalk and insertion loss for optimal signal integrity. Its compatibility with legacy systems, availability in various configurations such as 3, 4, and 5 pair versions, and support for both 0.4mm and 0.5mm compliant pins make it a flexible solution for modern and future high-speed data infrastructures. UL approved and tested for durability, it is suitable for communications, medical, and industrial markets.
AMPHENOL COMMUNICATIONS SOLUTIONS 10123529102LF High-Speed Backplane Connector Specifications:
- Contact Material: Copper Alloy
- Contact Finish: Tin over Nickel and optional Tin-lead
- Housing Material: High Performance Thermoplastic, UL 94-VO
- Insertion Loss: Low, detailed in performance graphs
- Crosstalk: Reduced via design, detailed in graphs
- Current Rating: 0.5 A/contact with <30°C rise
- Durability: 200 cycles
- Mating Force: 0.50N max. per contact
- Unmating Force: 0.15N min. per contact
- Contact Resistance: <60 mΩ initial, <120 mΩ in coplanar
- Maximum Power: rated per contact
- Environmental: Telcordia GR-1217-CORE qualified
- Connector Types: Right angle, vertical header, coplanar, inverse
- Pin Options: 0.4mm and 0.5mm press-fit pins
- Application: Backplane, midplane, and coplanar applications for data and communication systems
- Product Number: GS-12-0956, GS-20-0305

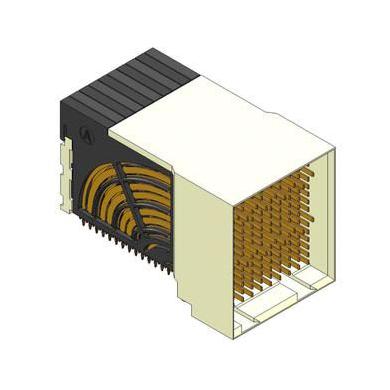

Buy the FCI 101235291 – Reliable High-Speed Backplane Connectors for Industrial Applications
Upgrade your data systems with this high-speed backplane connector supporting up to 20Gb/s per differential pair. Its shieldless, low loss design ensures optimal signal integrity, with compatibility for legacy systems. Perfect for communications, industrial, and medical applications, this connector offers reliable contact resistance, durability for 200 cycles, and flexible configurations including 0.4mm and 0.5mm pins. Designed for backplanes, midplanes, and coplanar setups, it is essential for ensuring seamless high-speed data transfer and system upgrade compatibility.
Buy FCI 101235291 now and experience unmatched reliability and performance for high-speed data communication systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10123529102LF?
You can click on the BUY or RFQ button to purchase 10123529102LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10123529102LF?
You can download the 10123529102LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10123529102LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
