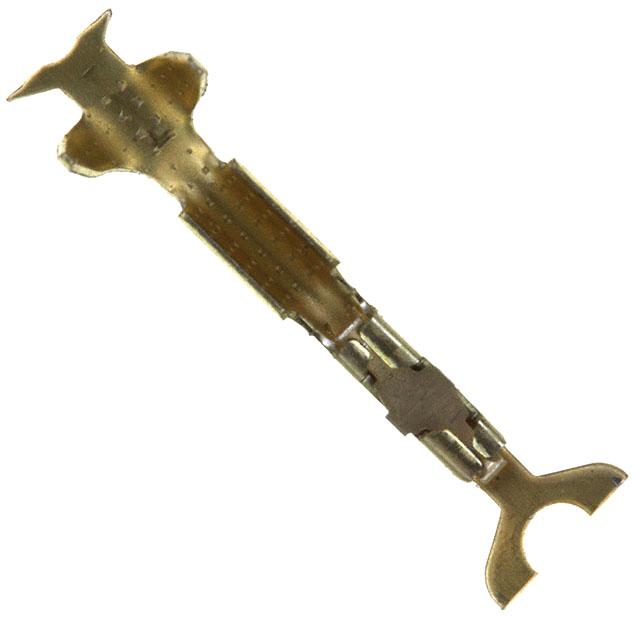

AMPHENOL COMMUNICATIONS SOLUTIONS 48051000LF Datasheet & Stock

The Mini PV series high-durability, high-retention Wire-to-Board Connector System connects discrete wires to printed circuit boards. It features high-reliability dual-metal receptacle terminals that plug into industry-standard 0.025-inch square posts. The system offers various containment, protection, and guidance options for both sides of the connector interface. Wire-side PV® receptacle terminals can be terminated to wire and used separately or inserted into multiple-circuit MINI-LATCH connector housings with optional polarizing keys. The printed circuit side includes shrouded multi-post headers with an integral friction feature to grip mating housings and reduce disengagement risk. Users can select from three spring pressure options to customize insertion and withdrawal forces. The design includes a unique dual-metal PV® contact that maintains contact pressure through 1,000 mating cycles. Beryllium copper springs provide high force at the interface, while brass contacts ensure reliable, gas-tight crimp terminations. MINI-LATCH housings securely retain PV® wire contacts and are available in single or double row configurations. Keyed housings and header keyways provide polarization to prevent mis-mating. The two-wall header design offers mechanical advantages and cost efficiency, supporting an operating temperature range from -40°C to 105°C. Suitable for diverse applications including consumer electronics, sensing and instrumentation, medical devices, defense, military and aerospace, communications, networking, and industrial use.

View 48051000LFDatasheet [pdf]
