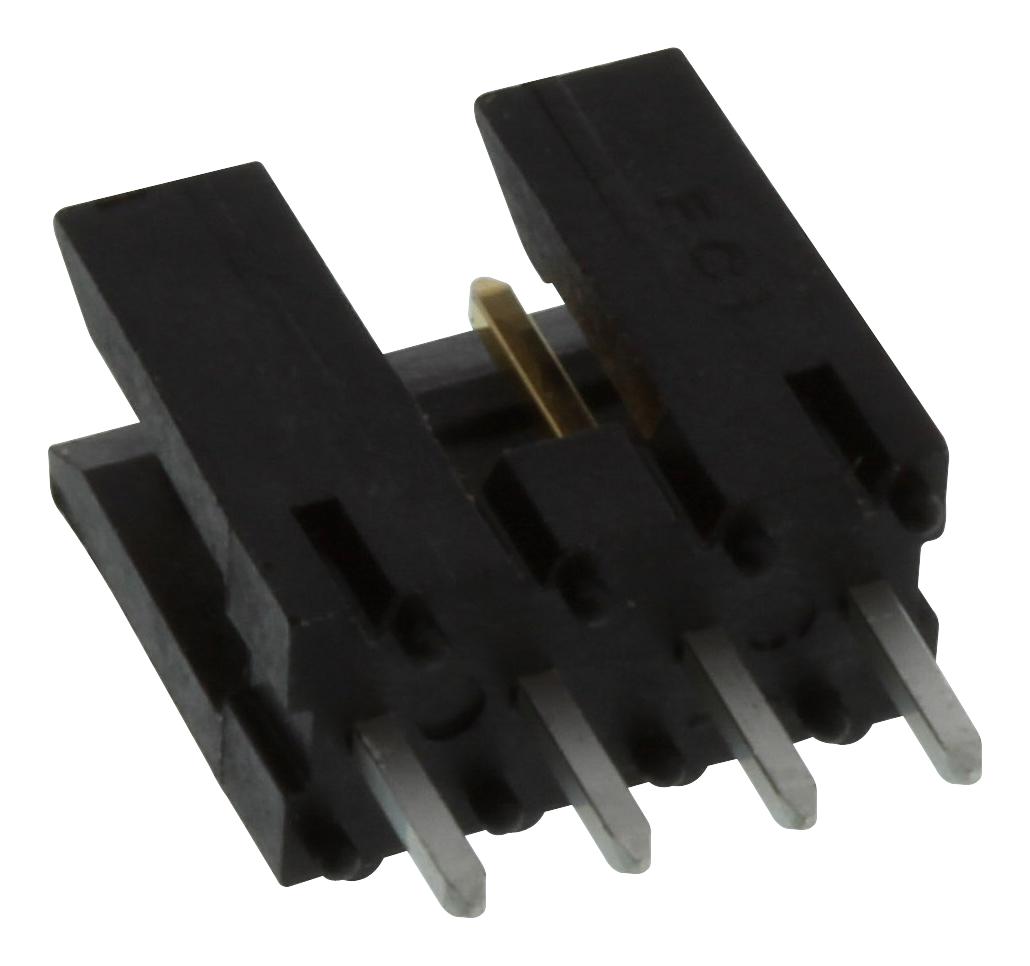

AMPHENOL COMMUNICATIONS SOLUTIONS 69167104HLF Wire-to-Board Connector System
The PV wire-to-board connector system offers high reliability, durability, and secure connections for electronic, automotive, industrial, and medical applications. Featuring dual-metal receptacle contacts, it maintains performance over 1000 mating cycles with a gas-tight crimp. The system includes polarized MINI-LATCH housings, shrouded headers, and options for single or double row configurations, accommodating wire sizes up to 1.52mm. Its materials include brass, beryllium copper, and high-quality plastics, providing excellent electrical performance with a voltage withstand of 1000V RMS and a current rating of 3.0A per circuit.
AMPHENOL COMMUNICATIONS SOLUTIONS 69167104HLF Wire-to-Board Connector System Specifications:
- Contact Material: Brass and beryllium copper
- Contact Plating: Gold or lead-free pure tin
- Housing Material: Modified polyphenylene oxide and glass-filled nylon
- Current Rating: 3.0A per circuit with 32 AWG wire
- Voltage Rating: 1000V RMS
- Insulation Resistance: >10000MQ (wire connector), >5000MQ (header)
- Mating Force: High force spring 450g, Ultra-high force spring 100g
- Un-mating Force: High force spring 75g, Ultra-high force spring 175g
- Temperature Range: -40°C to +105°C
- Durability: 1000 cycles
- Maximum Wire Diameter: 1.52mm
- Standards: URE66906, CSALR46923
Buy the FCI PV® Wire-to-Board Connector – Reliable Connection for Industrial Applications
Purchase the FCI PV wire-to-board connector system online today to enhance your electronic, automotive, or industrial projects. Featuring dual-metal contacts, polarization, and high cycle durability, this connector ensures dependable performance. Its design supports various configurations, including single and double row options, with compatible wire sizes up to 1.52mm. Made from high-quality materials, it withstands voltages up to 1000V RMS and currents of 3.0A per circuit, offering excellent electrical integrity, ease of installation, and long-term reliability for critical applications.
Order your FCI PV® wire-to-board connector system today and ensure your projects feature high durability, reliable electrical connections, and flexible configurations.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 69167104HLF?
You can click on the BUY or RFQ button to purchase 69167104HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 69167104HLF?
You can download the 69167104HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 69167104HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
