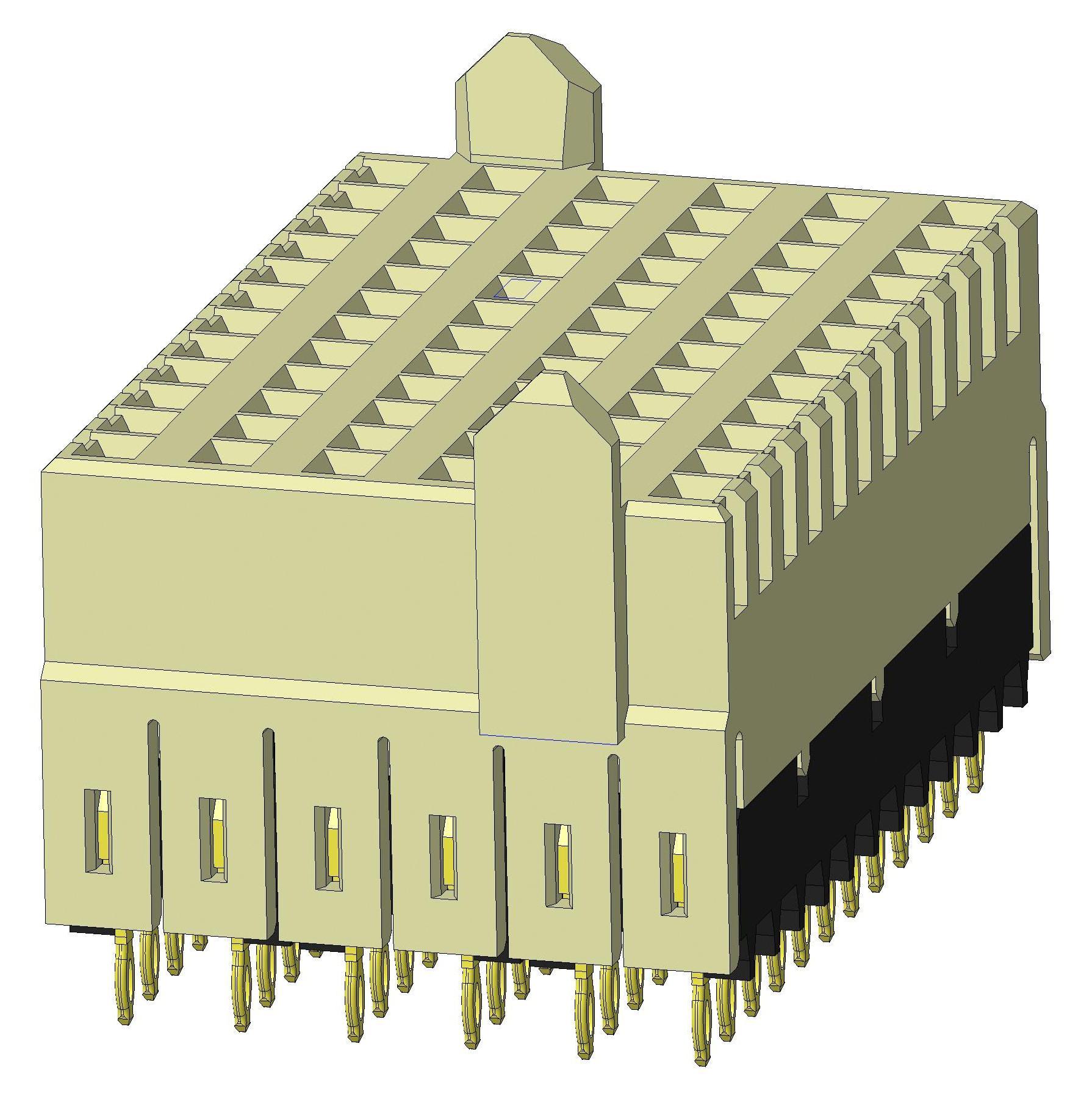

AMPHENOL COMMUNICATIONS SOLUTIONS 10127117102LF Backplane Connectors
The AirMax VS backplane connectors utilize innovative edge-coupling and air dielectric technology, delivering low insertion loss and minimal crosstalk ideal for telecom, networking, server, and storage systems. Featuring a shieldless open pin field design, they provide high flexibility for system architectures including backplane, midplane, and mezzanine applications. Made from copper alloy with high-performance thermoplastic housings, these connectors support speeds up to 25Gb/s, ensuring reliable high-speed data transfer. Their modular, cost-effective design simplifies system integration and supply chain management, making them suitable for diverse industry standards and applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 10127117102LF Backplane Connectors Specifications:
- Contacts: Copper Alloy
- Contact Finish: Tin over nickel; performance-based plating
- Housing: High-performance thermoplastic, UL94V-0
- Differential impedance: 100 + 82 @ 50 ps (10-90%) rise time, 85 ohms versions available
- Differential insertion loss: <1dB through 6.25Gb/s, <1.5dB through 8Gb/s and 12.5Gb/s
- Crosstalk: Near-end < -38 dB through 6.25Gb/s, < -28 dB through 12.5Gb/s; Far-end < -41 dB through 6.25Gb/s, < -28 dB through 12.5Gb/s
- Durability: 200 cycles
- Mating Force: 0.45N max./contact
- Unmating Force: 0.15N min./contact
- Current Rating: 0.5A/contact
- Pitch: 3mm between columns, options include 2mm, 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 32mm
- Connector Options: Headers and receptacles, vertical and right-angle designs
- Certification: Telcordia GR-1217-CORE, UL94V-0
- Packaging: Tubes and trays (for vertical receptacles)
Buy the FCI PartNumber 10127117102LF – Reliable Backplane Connectors for Industrial Applications
Enhance your electronic systems with FCI backplane connectors featuring advanced air dielectric technology for low insertion loss and minimal crosstalk. These high-speed, shieldless connectors support speeds up to 25Gb/s, enabling seamless data transfer and system flexibility for telecom, networking, and storage applications. Modular design simplifies inventory and upgrades, while industry-standard compliance ensures quick integration. With stock availability at most distributors, secure your supply chain, reduce costs, and accelerate your project timeline by purchasing these reliable connectors online today.
Buy FCI 10127117102LF now and experience unmatched reliability, high-speed performance, and versatile system compatibility in your next industrial design.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10127117102LF?
You can click on the BUY or RFQ button to purchase 10127117102LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10127117102LF?
You can download the 10127117102LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10127117102LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
