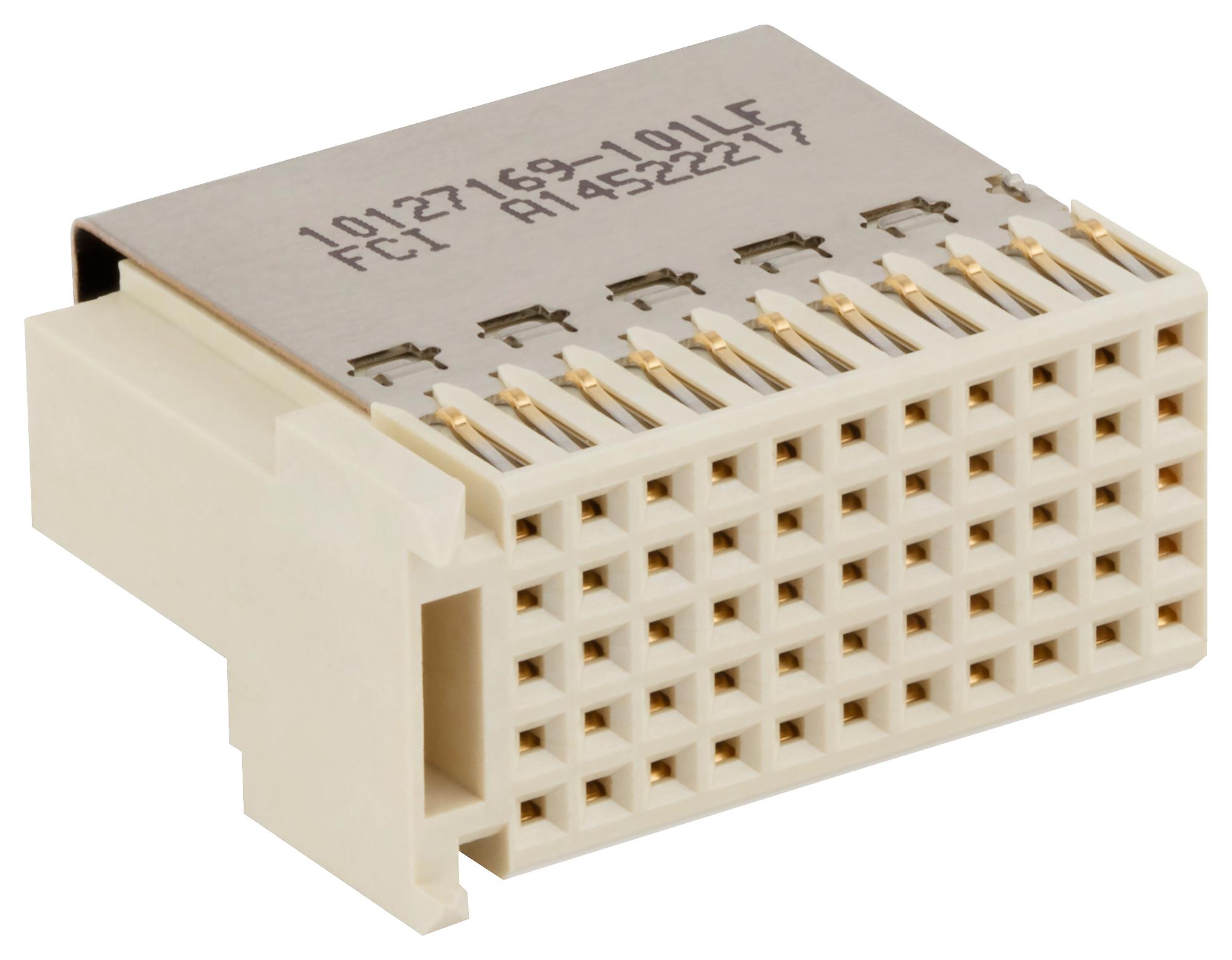

AMPHENOL COMMUNICATIONS SOLUTIONS 10127169101LF Modular Connector System
Millipacs® is a 2mm pitch modular interconnection system designed for board-to-board and cable-to-board applications in a high-performance HM configuration. The system complies with IEC 917, IEC 61076-4-101, and Telcordia GR-1217-CORE standards. It is optimized for applications requiring improved signal integrity and higher bandwidth, supporting differential signals at data rates up to 25 Gbps. Features include very low crosstalk, compatibility with standard and 10G Millipacs connectors, the ability to add blank positions, and optional shielding for enhanced performance.
AMPHENOL COMMUNICATIONS SOLUTIONS 10127169101LF Modular Connector System Specifications:
- Pitch: 2mm
- Material: High-Temperature polymer insulator, Copper Alloy contacts
- Contact Plating: Gold/Palladium nickel on mating areas, Tin over Nickel on press-fit
- Operating Current: 1.5A at 20°C, 1.0A at 70°C
- Test Voltage: 750 Vrms
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 10 MΩ min
- Mating Force: 0.75 N max per contact
- Withdrawal Force: 0.15 N min per contact
- Operating Temperature: -55°C to +125°C
- Standards: IEC 917, IEC 61076-4-101, Telcordia GR-1217-CORE
- Compliance: UL and CSA recognized
- Modules: 5 and 8 rows; hybrid modules with signal, power, and coax contacts
- Protection: Optional shielding
- Durability: up to 50, 250, or 500 mating cycles depending on performance level
Buy the Millipacs 10127169101LF – Reliable Modular Connectors for Industrial Applications
Enhance your electronic assemblies with the Millipacs modular connector system designed for high bandwidth and signal integrity. Compliant with IEC standards, it supports differential signals up to 25 Gbps, making it ideal for communication, industrial, and medical applications. Its low crosstalk and optional shielding ensure reliable data transfer, while the modular design offers flexibility with hybrid modules including signal, power, and coax contacts. Perfect for high-density PCB applications requiring durability and precise performance in demanding industrial environments.
Buy Millipacs 10127169101LF now and experience unmatched reliability and high-performance interconnections for your industrial and telecom systems.
