AMPHENOL COMMUNICATIONS SOLUTIONS 101602981111002LF High-Speed Board-to-Board Connector
The BergStak® Secure Connector by Amphenol is a high-density, high-speed, and high-security board-to-board connector designed for data communication, industrial automation, and medical technology. It features EMI shielding, a 3-row contact design with 37 positions per row supporting data transfer rates up to 32Gb/s, and dual-beam receptacle contacts for reliable connections. Available in one-time and multi-use options, it offers blind-mating, modular design for up to three sets, and tamper-resistant features for signal protection in secure environments, suitable for demanding industrial and telecommunication applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 101602981111002LF High-Speed Board-to-Board Connector Specifications:
- Housing: High temperature thermoplastic LCP, UL94V-0
- Contact Material: Copper alloy, high spring
- Plating: Gold / GXT on contact area, tin plating on soldering tail
- Current Rating: 1A per contact; 10A per shield
- Voltage Rating: 100V AC
- Insulation Resistance: 1x10^9 Ω min.
- Operating Temperature: -55°C to +105°C
- Durability: 200 mating cycles for multi-use options
- Electrical Performance: Data rate up to 32Gbps, LLCR 40 mΩ max.
- Mechanical: Mating/un-mating force max 1N/contact, vibration tested
- Environmental: IEC 60512-11-7, Class IIA corrosion resistance
- Dimensions: 3 x 37 positions, supports modular configurations
- Certifications: UL94V-0, IEC 60512-11-7

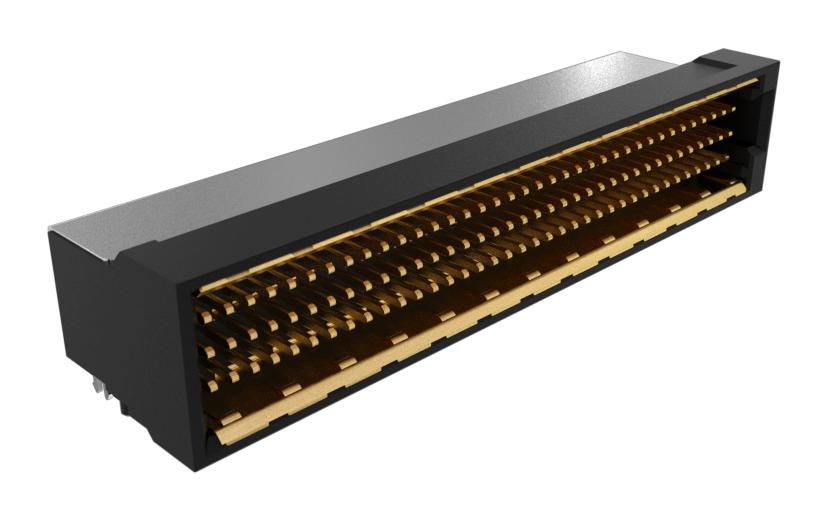

Buy the Buy Amphenol BergStak Secure Connector Part Number 101602981111002LF Online
Discover the secure, high-speed BergStak connector by Amphenol, engineered for demanding industrial, telecommunication, and medical applications. It offers EMI shielding, a 3-row design with 37 positions per row, and data transfer speeds up to 32Gbps. The connector supports both one-time and multi-use configurations, with tamper-resistant options to prevent unauthorized disconnection. Its modular design allows up to three sets on a single board, delivering high electrical reliability, vibration resistance, and signal security in critical environments. Purchase now for dependable performance.
Order your Amphenol Series BergStak Secure Connector, Part Number 101602981111002LF today and ensure high-security, reliable high-speed data transmission.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 101602981111002LF?
You can click on the BUY or RFQ button to purchase 101602981111002LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 101602981111002LF?
You can download the 101602981111002LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 101602981111002LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
