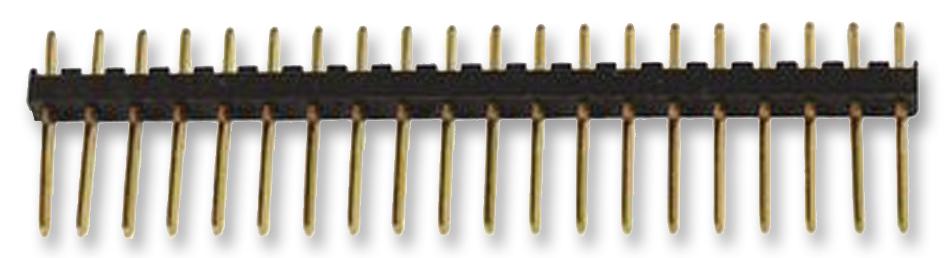

AMPHENOL COMMUNICATIONS SOLUTIONS 10129378920003BLF 2.54mm Unshrouded Header
The AMPHENOL EconoStik 2.54mm header is a versatile and cost-effective solution for board-to-board connectivity. Designed with a 0.64mm square wire and high-temperature resin, this header offers consistent mating performance and supports up to 50 mating cycles. It's ideal for industrial control systems, test equipment, metering devices, POS machines, surveillance equipment, and vending machines. The header is RoHS compliant and available in single-row, double-row, vertical, and right-angle configurations, making it adaptable to a wide range of design requirements.
AMPHENOL COMMUNICATIONS SOLUTIONS 10129378920003BLF 2.54mm Unshrouded Header Specifications:
- Contact Base Metal: Brass
- Contact Area Finish: 1u gold plating
- Solder Area Finish: 1u gold plating
- Housing Material: High-Temperature thermoplastic (UL94V-0)
- Insulation Resistance: 1000 M Ω min
- Low Level Contact Resistance: 20 m Ω max
- Withstanding Voltage: 1500 V ac
- Current Rating: 3A continuous
- Retention force between pin and housing: 9N per pin
- Durability: 50 mating cycles
- High Temperature Life: 105 °C
- MFG test: EIA 364-65 Class IIA, Duration 5 days (80hours for un-mating and 40hours for mating)
Buy the 10129378-920003BLF AMPHENOL COMMUNICATIONS SOLUTIONS 2.54mm Unshrouded Header | myMectronic
Securely purchase the AMPHENOL 10129378-920003BLF EconoStik header online for reliable connectivity in your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10129378920003BLF?
You can click on the BUY or RFQ button to purchase 10129378920003BLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10129378920003BLF?
You can download the 10129378920003BLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10129378920003BLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
