AMPHENOL COMMUNICATIONS SOLUTIONS RJSGE4886441 Modular Jack
The RJSGE Series Modular Jack is a high-performance 2x2, four-port Cat5e connector designed for reliable Ethernet connections up to 2.5G supporting 1G and 2.5G standards. Features press-fit contacts for ease of PCB attachment, available with various shield and LED options to meet diverse EMI and signaling needs. Constructed with high-temperature thermoplastic insulator and gold-plated contacts, it ensures durability, excellent electrical performance, and compliance with UL94V-0 standards. Suitable for networking, industrial automation, and communication equipment, this modular jack is RoHS and REACH compliant, offering versatile installation and enhanced EMI shielding options.
AMPHENOL COMMUNICATIONS SOLUTIONS RJSGE4886441 Modular Jack Specifications:
- Insulator: High temperature thermoplastic, UL94V-0, Black
- Contacts: Phosphor bronze, gold and nickel plated, with options for gold thickness (6u”, 15u”, 30u”, 50u”) over 50u” min. nickel on contact area
- Shield: Copper alloy, nickel plated with tin dipped tail or stainless steel with tin dipped tail
- LED: Pure tin plating on tails, Forward DC Current: 20mA typical, Forward Voltage: 1.9V max. @ 2mA, Wave Length: Yellow 587nm, Green 565nm, Red 625nm
- Electrical Performance: Contact Resistance max 20mΩ, Insulation Resistance min 500MΩ at 500V DC, Voltage Rating 125VAC, Current Rating 1.54A, DWV 1000V AC, Durability 750 mating cycles
- Mechanical: Insertion force max Slbs, Pull retention force min 20 lbs, Operating temperature -55°C to +85°C
- Packaging: Available in tray, tape and reel
- Certifications: RoHS, REACH, UL

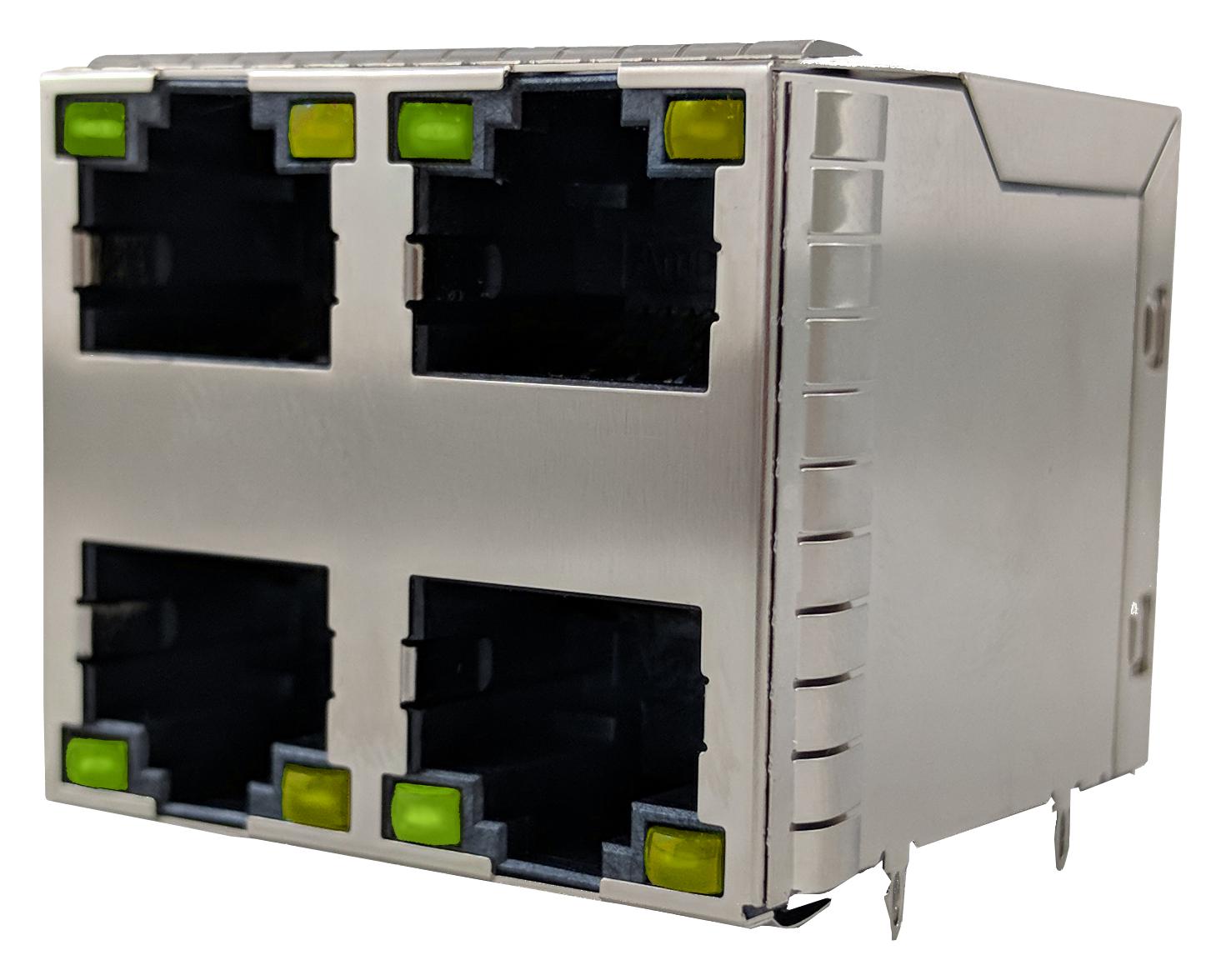

Buy the Amphenol Series RJSGE Modular Jack: RJSGE-488-6441
Purchase the Amphenol RJSGE Series Modular Jack online today and enjoy reliable, high-speed Ethernet connectivity for industrial and networking applications. This four-port Cat5e connector features press-fit contacts for easy PCB assembly, customizable LED options for status indication, and various shield configurations to optimize EMI performance. Designed to meet Cat5e standards and supporting 1G and 2.5G speeds, it offers excellent electrical characteristics, durability for 750 mating cycles, and compliance with RoHS and UL certifications. Perfect for networking, industrial automation, and communication systems requiring robust, easy-to-install modular connectors.
Get Amphenol RJSGE-488-6441 today—built for high-speed Ethernet and reliable industrial networking.
