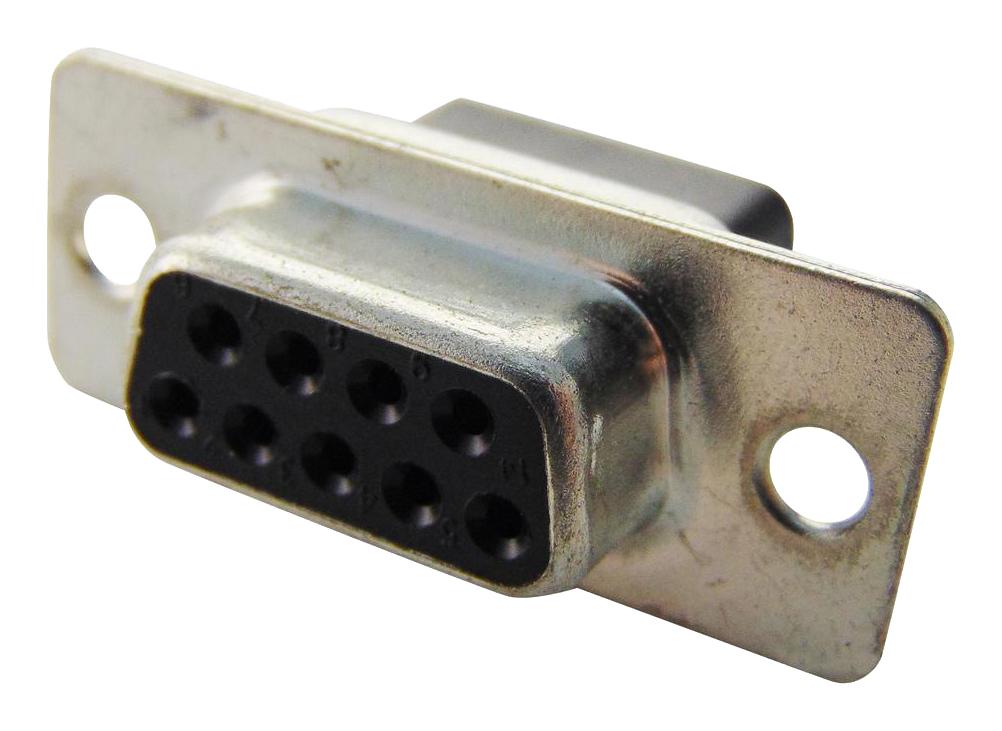

AMPHENOL COMMUNICATIONS SOLUTIONS L77SDEH09SOL2C309 D-Sub Connector
The Amphenol SD series features precision-formed contacts and insulated cavity design, ensuring high reliability for industrial, telecom, and standard applications. It offers economical PCB-mount connectors available in standard and high density configurations, with durable materials such as UL 94V-0 thermoplastic and gold-plated contacts. Suitable for aggressive environments, these connectors support current ratings up to 5A, voltage ratings of 250V AC, and withstand voltage of 1000V AC for one minute. Operating temperature ranges from -55°C to +125°C, making it an ideal choice for demanding industrial and electronic device connections.
AMPHENOL COMMUNICATIONS SOLUTIONS L77SDEH09SOL2C309 D-Sub Connector Specifications:
- Materials: Steel shell, UL 94V-0 thermoplastic insulator, gold-plated brass contacts
- Current rating: Standard Density 5A, High Density 3A
- Voltage rating: 250V AC, withstanding voltage 1000V AC for one minute
- Insulation resistance: 1000 MΩ at 500V DC
- Contact resistance: Max 20 mΩ
- Operating temperature: -55°C to +125°C
- Mechanical force: SD insertion 0.06kg min, 0.54kg max; HD insertion 0.02kg min
- Dimensions: Vary by number of contacts, e.g., 9 contacts length approx. 30.84mm, 50 contacts approx. 67mm
- Plating Thickness: Gold flash + 0.381 μm gold, optional thicker plating for reliability
Buy the Buy Amphenol SD Series Connector Part Number L77SDEH09SOL2C309 Online
Order Amphenol SD series PCB mount connectors today for high-quality, reliable electronic connections suitable for industrial, telecom, and standard applications. Featuring precision-formed contacts, durable thermoplastic insulators, and gold-plated contacts, these connectors support current ratings of up to 5A and voltage ratings of 250V AC. They are designed to withstand harsh environments with operating temperatures from -55°C to +125°C and withstanding voltages of 1000V AC for one minute. Easily mountable, cost-effective, and RoHS compliant, they are your ideal choice for long-lasting, high-performance electronic connections. Purchase online now for fast delivery and expert support.
Get Amphenol SD connectors today—built for precision, durability, and reliable PCB connections for industrial and telecom needs.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L77SDEH09SOL2C309?
You can click on the BUY or RFQ button to purchase L77SDEH09SOL2C309 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L77SDEH09SOL2C309?
You can download the L77SDEH09SOL2C309 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L77SDEH09SOL2C309?
AMPHENOL COMMUNICATIONS SOLUTIONS
