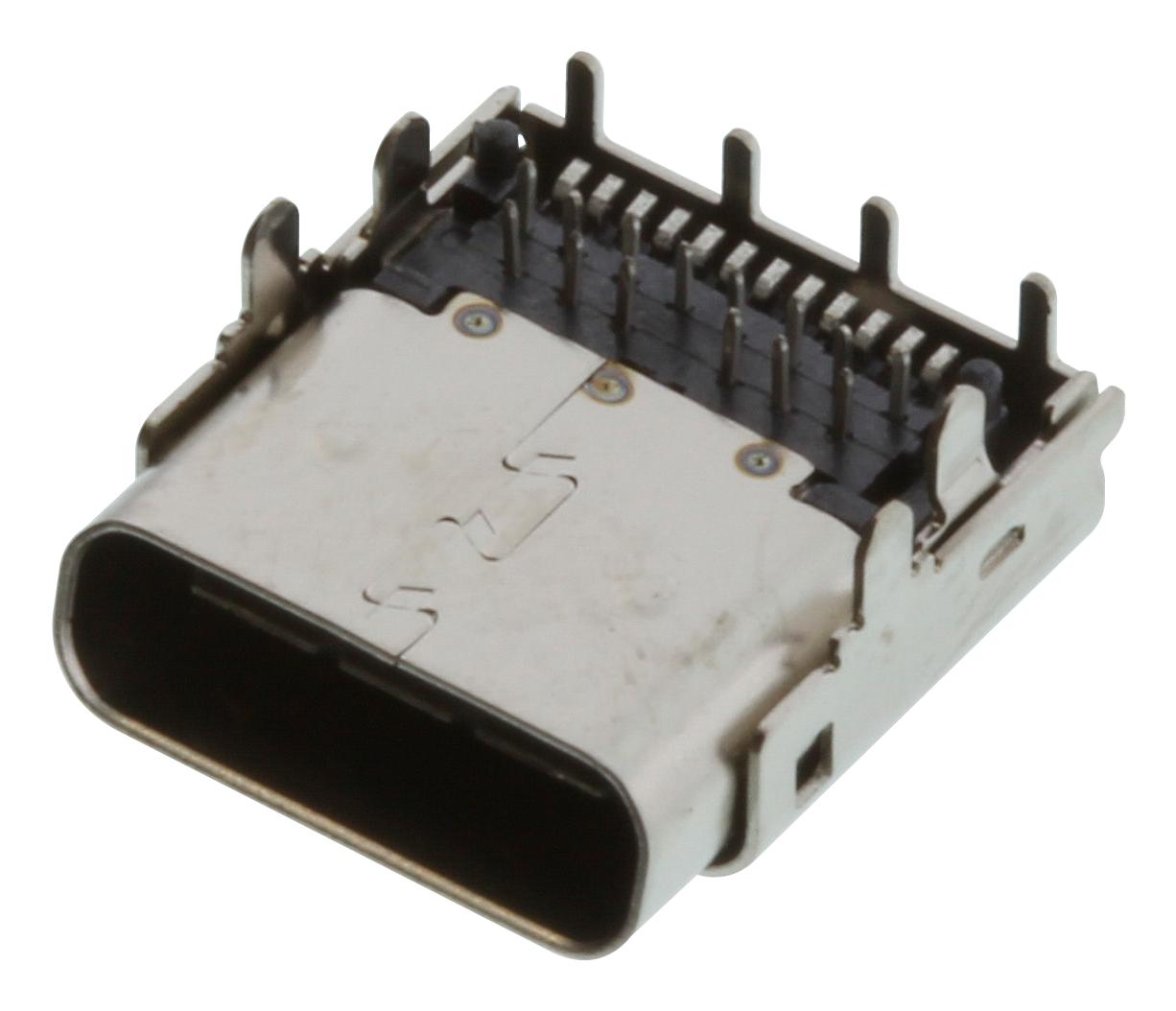

AMPHENOL COMMUNICATIONS SOLUTIONS 1013706600021LF USB 3.1 Type C Connector
The AMPHENOL COMMUNICATIONS SOLUTIONS 10137066-00021LF is a USB 3.1 Gen 1 Type C connector designed for multifunction single cable solutions. Its compact form factor and reversible design simplify connections across various devices. This connector supports SuperSpeed data transfer rates up to 5Gbps, power delivery up to 100W, and offers improved EMI shielding. It's ideal for applications in infotainment systems, portable devices, and industrial equipment, providing a flexible and reliable interconnection solution.
AMPHENOL COMMUNICATIONS SOLUTIONS 1013706600021LF USB 3.1 Type C Connector Specifications:
- Connector Type: USB 3.1 Type C
- Data Transfer Rate: Up to 5Gbps
- Power Delivery: Up to 100W
- Housing Material: High Temperature Thermoplastic
- Shell Material: Stainless Steel
- Terminal Material: Copper Alloy
- Mating Force: 5 to 20N
- Amphenol Product Specification: GS-12-1336
- Amphenol Packaging Specification: GS-14-2487
- Operating Temperature: -55°C to 85°C
- Durability: 10,000 mating cycles
- Low Level Contact Resistance Initial: 40m Ω max.
- Low Level Contact Resistance Delta: +/- 10m Ω max. after environmental stress
- Insulation Resistance: 100M Ω min.
- Dielectric Withstand Voltage: 100VAC
- Voltage Rating: 100VAC/DC
- Current Rating VBUS/GND: 5.0A
- Current Rating Vconn/GND: 1.25A
- Current Rating Other Contacts: 0.25A
Buy the 10137066-00021LF AMPHENOL COMMUNICATIONS SOLUTIONS USB 3.1 Type C Connector | myMectronic
Securely purchase the AMPHENOL 10137066-00021LF USB 3.1 Type C Connector for your commercial needs.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1013706600021LF?
You can click on the BUY or RFQ button to purchase 1013706600021LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1013706600021LF?
You can download the 1013706600021LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1013706600021LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
