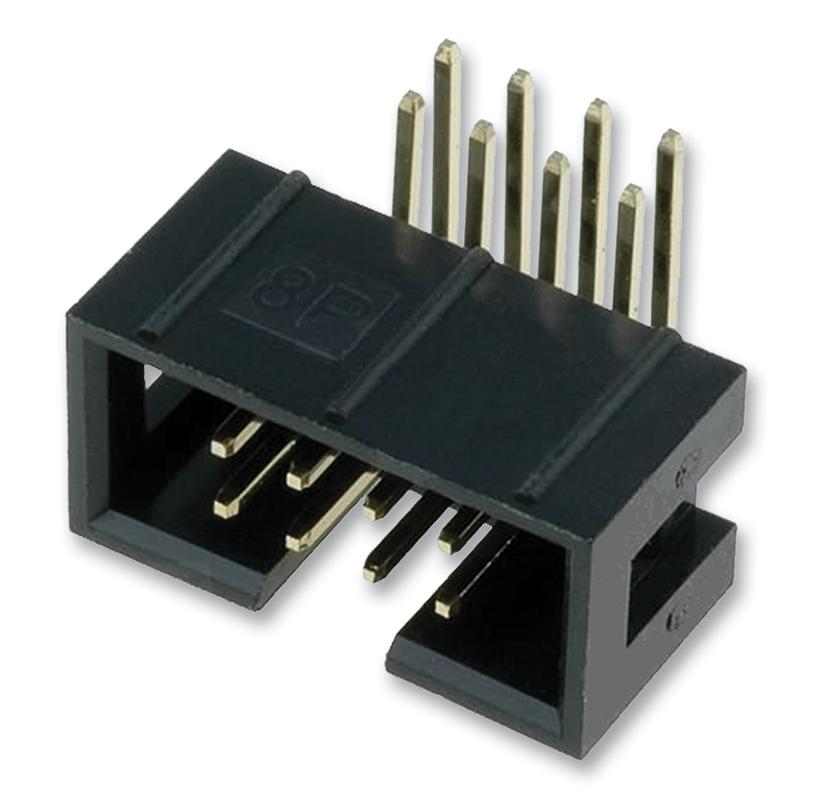

AMPHENOL COMMUNICATIONS SOLUTIONS T821150A1R100CEU Box Header Connector
This high-quality box header connector offers 2.54mm pitch, with options for 6 to 64 positions, featuring full gold or tin plating, and is constructed from thermoplastic with UL 94V-0 rating. Made of phosphor bronze contacts with under-plated 50μ
AMPHENOL COMMUNICATIONS SOLUTIONS T821150A1R100CEU Box Header Connector Specifications:
- Pitch: 2.54mm
- Positions: 6 to 64
- Material: Thermoplastic, UL 94V-0
- Contact Material: Phosphor Bronze
- Plating: Full flash gold or tin, over 50μ" nickel under-plating
- Contact Resistance: Max 20 milliohms at 1A
- Insulation Resistance: 1000 Megohms min
- Dielectric Withstanding Voltage: 1000 VAC/RMS at 60Hz
- Current Rating: 3A per contact
- Voltage Rating: 250VAC/RMS
- Temperature Range: -40°C to +105°C
- Design Features: Multiple latch options, color coding, stand-off for pin
- Application: Industrial, electronic, PCB connections
- Certifications: UL 94V-0
- Operating Environment: Harsh industrial environments, reliable performance
Buy the Mphenol 78121 R1 – Reliable Box Header for Industrial Applications
Discover the durable and versatile box header connector designed for high-performance industrial and electronic applications. Featuring 2.54mm pitch, various positions from 6 to 64, and options with full gold or tin plating over nickel, this connector ensures reliable electrical connections even in demanding environments. Made from thermoplastic UL 94V-0-rated material, it supports a current of 3A per contact and operates across a wide temperature range from -40°C to +105°C. Ideal for PCB mounting, with multiple latch options and stand-offs, making it perfect for manufacturing, automation, and system integration. Order online now for fast delivery and secure connections.
Order your Mphenol Series 78121 R1 box header today and give your projects the dependable quality they deserve, ensuring secure and durable electronic connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T821150A1R100CEU?
You can click on the BUY or RFQ button to purchase T821150A1R100CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T821150A1R100CEU?
You can download the T821150A1R100CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T821150A1R100CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
