AMPHENOL COMMUNICATIONS SOLUTIONS 72454020LF Connector System
The Quickie™ Connector System is designed for printed wiring board-to-flat cable interconnections in low power applications. It features corrosion-resistant materials, gold or tin plating, and robust contact and housing constructions ensuring durability, reliable electrical performance, and environmental resistance. This two-piece system includes a molded header and a multi-piece receptacle with self-stripping contact terminations for AWG 28 and 30 wires. Optional latches, strain relief, and polarizing features enhance secure connections and ease of use, making it ideal for low voltage signal and control applications requiring high mechanical integrity.
AMPHENOL COMMUNICATIONS SOLUTIONS 72454020LF Connector System Specifications:
- Material: Full-hard phosphor bronze contacts, polyester plastic insulators
- Plating: Gold per MIL-G-45204B, or tin-lead; nickel plating per QQ-N-290, Class 2
- Electrical Rating: 1.0 ampere DC maximum, contact resistance not exceeding 10 milliohms
- Insulation Resistance: Not less than 50,000 megohms, test voltage 1,000 volts RMS
- Dielectric Withstanding Voltage: 1,000 volts RMS, 60 Hz, 60 seconds duration
- Mechanical: Total mating force not exceeding specified limits, individual contact separation force minimum 25 grams
- Cable Compatibility: AWG 28 stranded, AWG 30 solid, up to 60 wires in the receptacle
- Environmental: Certified for high humidity, thermal shock, vibration, salt spray, and hydrogen sulfide exposure
- Connector Design: Two-piece molded design with optional latches, strain relief, and polarizing features
- Temperature Range: -65°C to +105°C, with high-temperature life up to 85°C

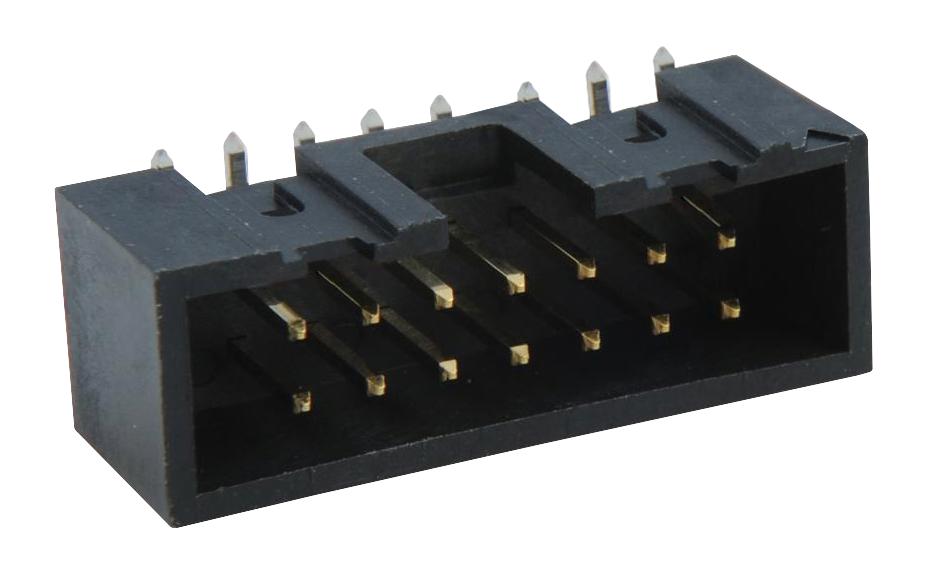

Buy the TechnicMicro BUS-12-082 – Reliable Connector System for Industrial Applications
Enhance your electronics with our dependable connector system, designed for printed wiring board-to-cable connections in low power environments. Featuring corrosion-resistant plating, robust contact materials, and optional locking features, this two-piece system ensures secure, reliable electrical connections. Easy to install with self-stripping contact terminations, it supports up to 60 wires of AWG 28 or 30. Suitable for various environmental conditions, including high humidity and vibration, it is ideal for industrial, automation, and control applications requiring durable, high-quality connectors. Buy online now for fast delivery and superior performance.
Order your TechnicMicro SeriesBUS-12-082 connector system today and give your projects the dependable quality they deserve with secure, low power interconnections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 72454020LF?
You can click on the BUY or RFQ button to purchase 72454020LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 72454020LF?
You can download the 72454020LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 72454020LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
