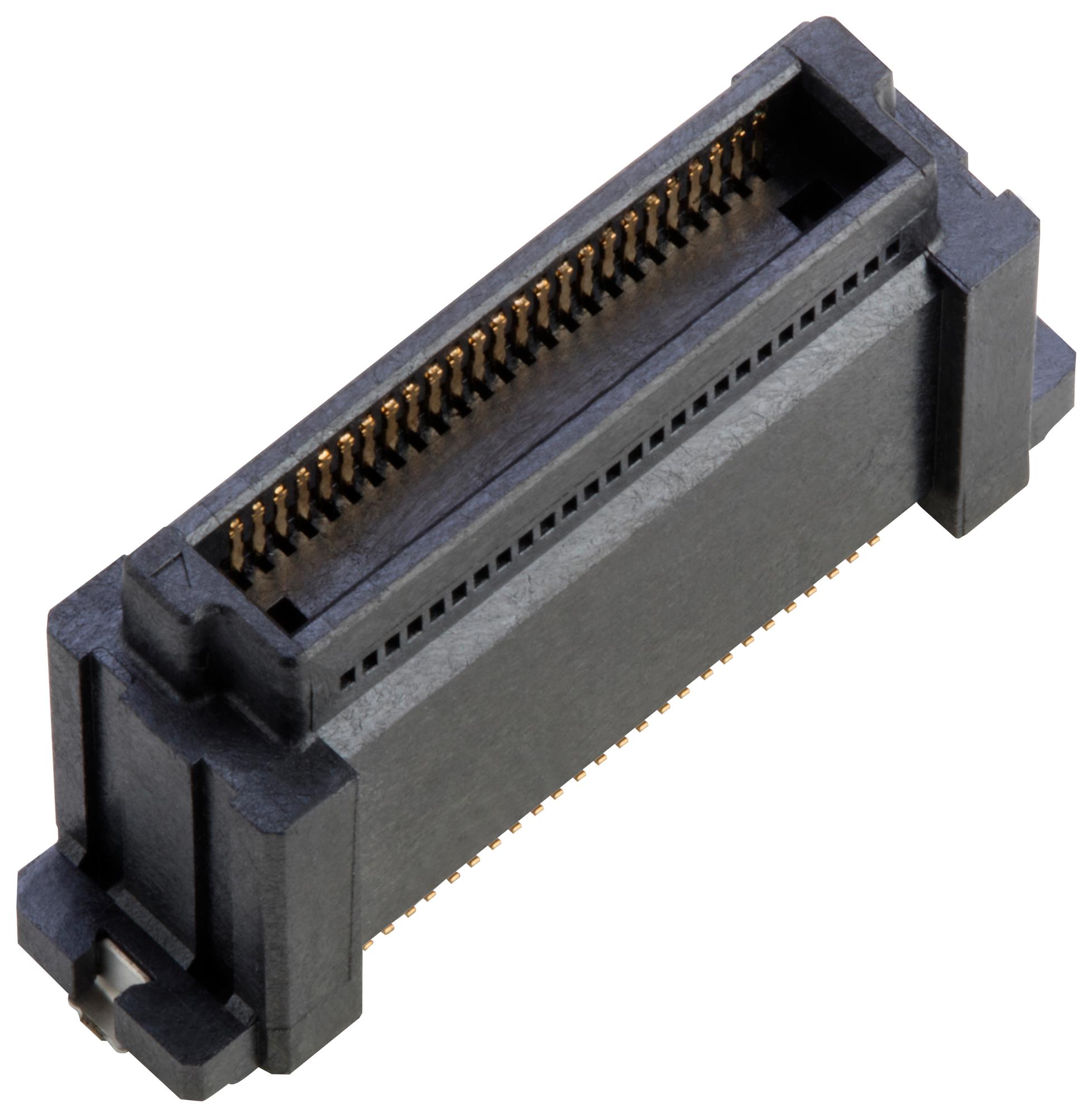

AMPHENOL COMMUNICATIONS SOLUTIONS 10138650058202SLF 0.50mm Mezzanine Connector
The BergStak HS[™] 0.50mm mezzanine connector series offers a flexible solution for high-speed and high-density parallel board-to-board applications. Designed to meet the demands of modern electronics, this connector supports data rates up to 32Gb/s and features a compact design with a 0.50mm contact pitch, conserving valuable PCB space. Its scoop-proof housing and multiple plating options enhance usability and versatility, catering to diverse application requirements. Ideal for datacom, telecom, server, storage, and embedded computer systems, the BergStak HS[™] provides reliable and efficient connectivity.
AMPHENOL COMMUNICATIONS SOLUTIONS 10138650058202SLF 0.50mm Mezzanine Connector Specifications:
- Housing: Glass filled LCP, UL94V-0
- Contact Base Metal: Copper alloy
- Receptacle: Copper alloy, high spring
- Plug: Copper alloy
- Solder Area Finish: Matte pure tin over nickel
- Insulation Resistance: 100M Ω min (Initial), 50M Ω min (After Test)
- Current Rating: 0.5A/contact
- Contact Resistance: 50m Ω max (Initial), 70m Ω max (After Test)
- Durability: 100 mating cycles
- Mating Force: 0.9N max./contact
- Unmating Force: 0.1N min./contact
- Operating Temperature Range: -40°C to +125°C
- High Temperature Life: 105°C ±5°C for 1000 hours
- Humidity: 90-95% relative Humidity for 240 hours
- Product Specification: GS-12-1479
- Voltage Rating: 50VAC
- Signal Integrity (Differential pairs): Supports both 85 Ω and 100 Ω applications
- Stack Height: 12mm
- Positions: 50
- Connector Type: Vertical Header
