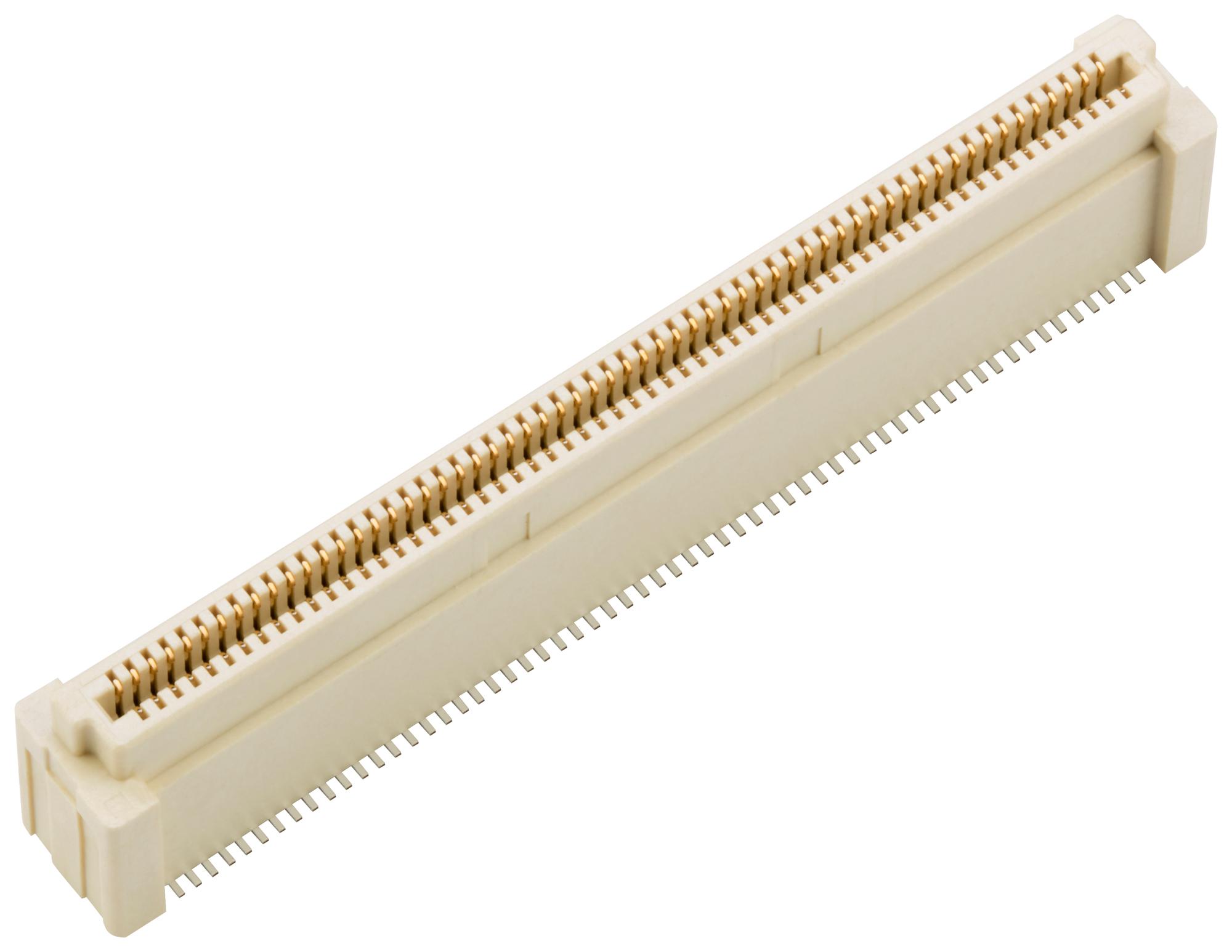

AMPHENOL COMMUNICATIONS SOLUTIONS 10139781121402LF 0.80mm Mezzanine Connector
The BergStak+™ 0.80mm mezzanine connector is a next-generation solution for high-speed data transmission. Designed for compatibility with existing BergStak systems, it supports PCIe 4.0 standards and offers a range of configurations to meet diverse application needs. Its optimized housing and terminal profile, coupled with features like scoop-proof housings and multiple plating options, ensure reliable performance in datacom, telecom, server, storage, and embedded computer applications. The connector is RoHS compliant and lead-free, meeting environmental and safety requirements.
AMPHENOL COMMUNICATIONS SOLUTIONS 10139781121402LF 0.80mm Mezzanine Connector Specifications:
- Housing Material: Glass filled LCP, UL94V-0
- Contact Base Metal: Copper Alloy, High Spring (Receptacle), Brass (Plug)
- Operating Temperature Range: -40°C to +125°C
- High Temperature Life: 105°C ±5°C for 1000 hours
- Humidity: 80%-98% relative humidity, 24h/ cycle, total 10 cycles
- Solder Area Finish: Matte pure Tin over Nickel
- Durability: 100 mating cycles
- Mating Force: 0.9N max./contact
- Unmating Force: 0.9N max./contact
- Insulation Resistance: 1000M Ω min.
- Current Rating: 0.8A/contact
- Contact Resistance: Initial: 30m Ω max., After Test: 50m Ω max.
- Voltage Rating: 100VAC
- Impedance: 85 Ω @30ps (20-80%)
- Return Loss: <-10dB up to 8GHz
- Insertion Loss: >-1dB up to 8GHz
- NEXT: <-32dB up to 8GHz
- FEXT: <-32dB up to 8GHz
- Position Options: 80 and 120 positions
- Stack Heights: 5mm, 8mm, 12mm, 16mm
