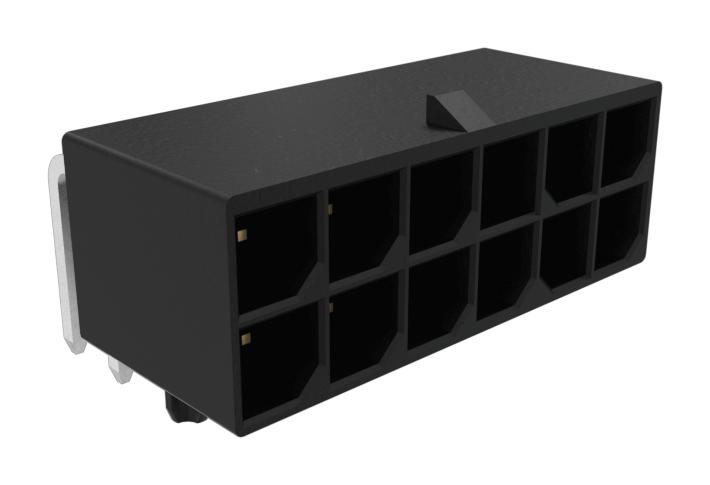

AMPHENOL COMMUNICATIONS SOLUTIONS 1014699706100LF Power Connector System
The AMPHENOL COMMUNICATIONS SOLUTIONS Minitek Pwr 5.70 connector system provides a comprehensive solution for power applications, offering a high current rating of up to 23A per contact and accommodating wire gauges from 16 to 12AWG for wire-to-board connections. Its polarized mating geometry prevents mis-mating, while the wide operating temperature range (-40°C to 105°C) ensures suitability for diverse environments. The scoop-proof housing protects terminals from damage, and the system is available in configurations from 2 to 12 circuits for dual-row applications. This connector is ideal for applications requiring secure and reliable power transmission in various industries.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014699706100LF Power Connector System Specifications:
- Current Rating: Up to 23A/contact
- Operating Temperature Range: -40°C to 105°C (Tin Plated)
- Voltage Rating: 600V AC (RMS)/DC
- Contact Resistance: Tin plated: 10m Ω / gold plating: 5m Ω max.
- Mating Force: Tin plated: 6.8N, Gold plated: 6.0N per circuit max.
- Unmating Force: Tin plated: 6.5N, Gold plated: 5.6N per circuit max.
- Durability: Tin plated: 25 cycles, Gold plated: 200 cycles
- Low Level Contact Resistance: 2m Ω max. (Initial)
- Insulation Resistance: 1000M Ω min.
- Dielectric Withstand Voltage: 2200V AC
- Material (Board Connector): High-conductivity copper with optional tin and gold plating
- Material (Header Housing): LCP, black & natural, UL 94V-0
- Material (Receptacle Housing): Nylon 66, black & natural, UL 94V-0 & UL 94V-2
- Material (Crimping Terminal): High-conductivity copper with optional tin and gold plating
- UL Approval: E66906
- TUV Approval: B171234414032
- Amphenol Product Specification: GS-12-1405
- Amphenol Packaging Specification: GS-14-2595
- Amphenol Application Specification: GS-20-0687
- Flammability Rating: UL94V-0
- Halogen-free: Yes
- RoHS Compliant: Yes
Buy the 10146997-06100LF AMPHENOL COMMUNICATIONS SOLUTIONS Power Connector System | myMectronic
Purchase the AMPHENOL COMMUNICATIONS SOLUTIONS 10146997-06100LF Power Connector System securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014699706100LF?
You can click on the BUY or RFQ button to purchase 1014699706100LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014699706100LF?
You can download the 1014699706100LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014699706100LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
