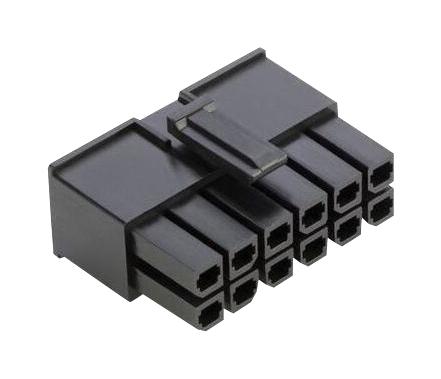

AMPHENOL COMMUNICATIONS SOLUTIONS 1014270712LF Power Connector
Amphenol's Minitek Pwr 5.7 power connector delivers high-current capacity up to 23A per contact, ideal for wire-to-board applications with wire gauges from 16AWG to 12AWG. Designed with polarized mating geometry, it prevents mis-mating and ensures secure connections. Operating from -40°C to 105°C, it features corrosion-resistant post-plated terminals and complies with IEC 60335-1 standards, making it suitable for household, industrial, and commercial environments. The connector’s UL94V-0 flammability rated LCP material, halogen-free resin, and glow wire compliance guarantee safety and durability in various applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014270712LF Power Connector Specifications:
- Current Rating: Up to 23A per contact
- Wire Range: 16-12 AWG
- Operating Temperature: -40°C to 105°C
- Material: LCP, UL94V-0 flammability rated
- Housing Material: Nylon 66, UL94V-0 & UL94V-2
- Contact Material: High-conductivity copper, tin and gold plated options
- Mating Force: 6.8N (tin), 6.0N (gold)
- Unmating Force: 6.5N (tin), 5.6N (gold)
- Voltage Rating: 600V AC/DC
- Dielectric Withstand Voltage: 2200V AC
- Insulation Resistance: 1000MQ min.
- Durability: 25 cycles (tin), 200 cycles (gold)
- Flammability: UL94V-0
- Compliance: RoHS, IEC 60335-1, halogen-free resin
Buy the Amphenol 1014270712LF – Reliable Power Connector for Industrial Applications
Choose the Amphenol Minitek Pwr 5.7 power connector for your high-current electrical needs. Supporting 23A per contact and compatible with 16-12AWG wires, it offers polarized mating and a wide temperature range from -40°C to 105°C. Its corrosion-resistant, UL94V-0 rated material makes it suitable for household and industrial environments. The connector includes high-quality, plated terminals, providing secure and reliable connections for wire-to-board applications. Buy online now and ensure your projects benefit from top-tier safety, durability, and performance standards.
Order your Amphenol Series 1014270712LF high-current power connector today and equip your projects with dependable, safe, and high-performance power solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014270712LF?
You can click on the BUY or RFQ button to purchase 1014270712LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014270712LF?
You can download the 1014270712LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014270712LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
