AMPHENOL COMMUNICATIONS SOLUTIONS 10143250101LF Power Connector System
The Minitek Pwr 5.7 Vertical PCB header is a high-current, high-reliability connector system designed for power applications. It offers a current rating of up to 23A per contact and features polarized mating geometry to prevent mis-mating. Manufactured from UL94V-0 flammability rated LCP and halogen-free resin, it provides excellent thermal and environmental resistance, including protection against salt spray and gas corrosion. Suitable for various applications such as telecommunications, power supplies, HVAC, and industrial equipment, it ensures secure mating and durability with high retention force and reliable contact performance.
AMPHENOL COMMUNICATIONS SOLUTIONS 10143250101LF Power Connector System Specifications:
- Current Rating: Up to 23A per contact
- Voltage Rating: 600V AC/DC
- Operating Temperature: -40°C to 105°C
- Housing Material: UL94V-0 Nylon 66 & LCP
- Contact Material: High-Conductivity Copper, Tin and Gold Plated
- Mating Force: Tin plated 6.8N, Gold plated 6.0N per circuit
- Unmating Force: Tin plated 6.5N, Gold plated 5.6N per circuit
- Durability: Tin plated 25 cycles, Gold plated 200 cycles
- Insulation Resistance: 1000MQ min.
- Low Level Contact Resistance: 2mΩ max.
- Flammability: UL94V-0 rated
- Environmental Resistance: Salt spray and gas corrosion resistant
- Certification: UL (UK approval: 66906), TUV (B171234414032)
- Package: Tray for PCB header, Bag for housing, Reel for terminals
- Temperature Range: -40°C to 105°C

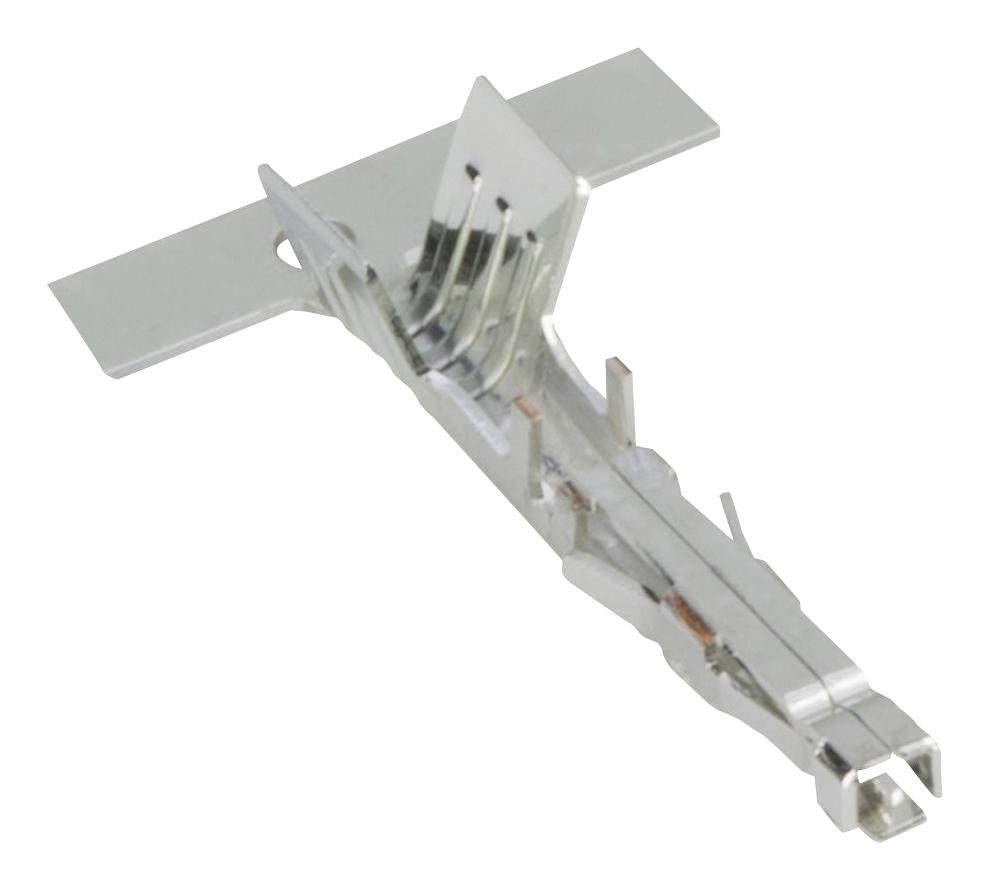

Buy the Amphenol Series Pwr Connector: 101432501
Purchase the Minitek Pwr 5.7 Connector System online today for high-current reliable power connections in telecommunications, industrial, and consumer electronics. Engineered for durability, it features polarized mating, high retention force, and excellent environmental resistance including corrosion protection and high temperature tolerance. With a current rating up to 23A per contact and UL and TUV approvals, this connector ensures safe, efficient power transfer in a wide range of electronic and power supply systems. Order now for fast delivery and trusted performance.
Get Amphenol Minitek Pwr 5.7 connector today—built for high current power applications with secure, durable, and environmentally resistant design.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10143250101LF?
You can click on the BUY or RFQ button to purchase 10143250101LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10143250101LF?
You can download the 10143250101LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10143250101LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
