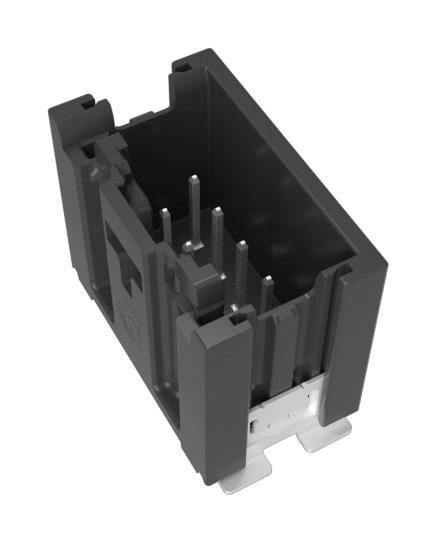

AMPHENOL COMMUNICATIONS SOLUTIONS 10143535104KLF Crimp-to-Wire Connector
The Minitek MicroSpace™ crimp-to-wire connector platform offers a compact, robust, and versatile solution for industrial wiring connections, supporting LV214 Severity-2 standards. Available in 1.80mm, 1.50mm, and 1.27mm pitches, it features single and double row configurations with top and side latch options. Designed for harsh environments, it has keying to prevent mismatching, terminal positioning assurance, and a locking system for proper mating. The connector uses existing proven design controls, with a crimp section compatible with automated tooling up to 22 AWG, providing excellent vibration resilience and current rating of 4A per contact. No special tools are required, ensuring reliable, easy assembly and high-performance electrical connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 10143535104KLF Crimp-to-Wire Connector Specifications:
- Material: High Current Alloy with optional Tin and Gold/GXT plating
- Housing: High temperature thermoplastic, UL94V-0
- Contact Insertion Force: <3N
- Low Insertion Force Terminal: <2N (upon request)
- Terminal Retention: >50N
- Durability: 20 mating cycles for Sn; 100 for Au/GXT
- Low Level Contact Resistance: <30mΩ
- Insulation Resistance: >100MΩ
- Voltage Rating: 48V
- Current Rating: 4A
- Dielectric Withstanding Voltage: 500VAC
- Temperature Range: -40°C to +130°C
- Wire Pullout Force for 0.35mm²: >50N
- Operating Temperature: -40°C to +130°C
Buy the Amphenol 10143535104KLF – Reliable Crimp-to-Wire Connector for Industrial Applications
Enhance your industrial wiring with the reliable and versatile Crimp-to-Wire Connector. Designed for harsh environments, it features keying, high vibration resistance, and current capacity of 4A per contact. Its compact design supports pitches of 1.27mm, 1.50mm, and 1.80mm, suitable for various applications including sensors, cameras, HVAC, lighting, and power steering. Easy to assemble without special tools, this connector ensures proper mating, locking, and long-term durability for demanding industrial systems. Order online today for dependable performance.
Buy Amphenol 10143535104KLF now and experience unmatched reliability and performance in harsh industrial environments with high vibration resistance.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10143535104KLF?
You can click on the BUY or RFQ button to purchase 10143535104KLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10143535104KLF?
You can download the 10143535104KLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10143535104KLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
