AMPHENOL COMMUNICATIONS SOLUTIONS 10143535112KLF MicroSpace Connector
The Minitek MicroSpace™ crimp-to-wire connector platform supports LV214 Severity-2 compliance, offering reliable, high-vibration performance at 1.80mm, 1.50mm, and 1.27mm pitches. This compact, durable system is versatile with single and double row options, top or side latch design, and a low insertion force terminal for easy mating. Features include keying to prevent mismatching, terminal and connector positioning assurance (TPA, CPA), with a maximum current of 4A per contact. Designed for harsh environments, it uses existing crimp tooling up to 22 AWG, ensuring secure locking with over 75N strength and normal force of 4N for vibration resistance.
AMPHENOL COMMUNICATIONS SOLUTIONS 10143535112KLF MicroSpace Connector Specifications:
- Pitch sizes: 1.27mm, 1.50mm, 1.80mm
- Number of positions: 2-16
- Housing Material: High-temp thermoplastic UL94V-0
- Contact Material: High Current Alloy, optional Tin and Gold plating
- Current Rating: 4A per contact
- Voltage Rating: 48V
- Temperature Operating Range: -40°C to +130°C
- Terminal Insertion Force: <3N, optional <2N
- Terminal Retention Force: >50N
- Durability: 20 cycles Sn, 100 cycles Au/GXT
- Contact Resistance: <30mΩ
- Insulation Resistance: >100MΩ
- Dielectric Withstanding Voltage: 500VAC
- Temperature Rise: Max 30°C
- Wire Range: up to 22 AWG
- Locking Strength: >75N
- Vibration Resistance: 4N normal force

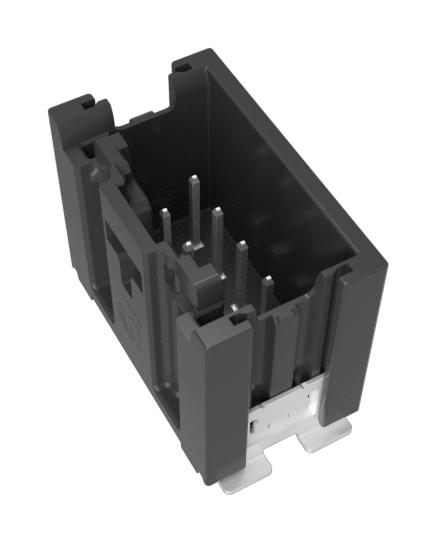

Buy the Buy Amphenol MicroSpace Crimp-To-Wire Part Number 10143535112KLF Online
Enhance your electronic assemblies with the MicroSpace Connector, designed for harsh environments and high vibration applications. Its compact form, keying to prevent mismatching, and high locking strength ensure dependable connections. Compatible with automated crimping tools up to 22 AWG, it features low insertion force terminals for ease of use. With current ratings up to 4A per contact and operating temperature up to 130°C, this versatile connector supports many applications including sensors, HVAC, and lighting systems, making assembly efficient and reliable.
Buy Amphenol MicroSpace 10143535112KLF now and experience unmatched reliability, high vibration resistance, and easy mating in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10143535112KLF?
You can click on the BUY or RFQ button to purchase 10143535112KLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10143535112KLF?
You can download the 10143535112KLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10143535112KLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
