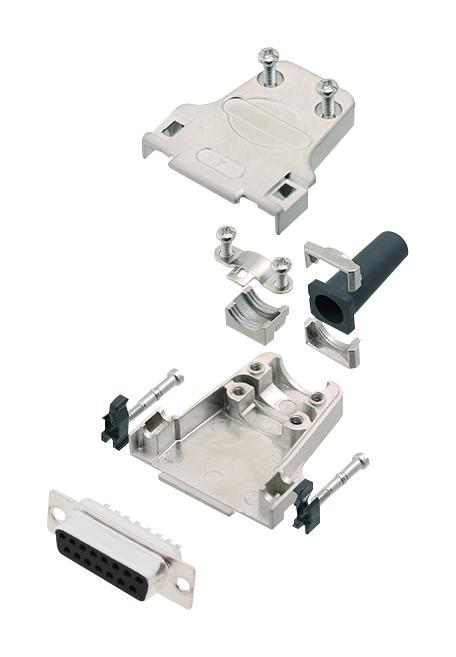

AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF15RGL77SDA15S D-Sub Connector Kit
The D-Sub connector kit offers reliable performance with zinc, nickel-plated shells and glass-filled thermoplastic insulators rated for operating temperatures from -45°C to +105°C. It features thumb screws with top entry design, accommodating cables up to 6.5mm to 15mm diameter depending on the port. The solder cup contacts are copper alloy with gold flash over nickel plating, supporting currents up to 5A and withstanding voltages over 1000V RMS. It provides excellent EMI shielding, is re-openable, and available in 9, 15, 25, and 37-pin configurations for versatile industrial use.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF15RGL77SDA15S D-Sub Connector Kit Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Top Entry, Thumbscrews UNC 4-40
- Cable O.D - Standard: 9-Way up to 6.5mm, 15-Way up to 6.5mm, 25-Way up to 8.0mm, 37-Way up to 9.0mm
- Insulator: Glass filled TP, UL94 V-0
- Shell: Steel, Tin Plated
- Contact pins: Copper Alloy with Gold Flash over Nickel
- Withstanding Voltage: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 5A
- Insulator Resistance: >5000MQ min.
- Dimensions: 9-way - 31.6mm x 39.5mm x 15.2mm, 15-way - 40.0mm x 41.0mm x 15.2mm, 25-way - 53.7mm x 47.5mm x 15.2mm, 37-way - 70.2mm x 48.0mm x 15.2mm
- Features: EMI shielding, re-openable, spring-clip mounted jackscrews
Buy the Buy Amphenol Connectors Part Number L17DTZF15RGL77SDA15S Online
Order the Amphenol D-Sub connector kit L17DTZF15RGL77SDA15S online today for high-performance, durable, and EMI-shielded connections suitable for a wide range of electronic and industrial applications. Featuring zinc, nickel-plated shells, glass-filled thermoplastic insulators, and solder cup contacts, this kit supports multiple pin configurations and robust voltage and current ratings. Its re-openable design and top-entry thumbscrews ensure easy installation and maintenance. Perfect for reliable, high-quality data and power transmissions in demanding environments.
Buy Amphenol connector kit L17DTZF15RGL77SDA15S now and experience reliable connectivity, excellent EMI shielding, and versatile industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF15RGL77SDA15S?
You can click on the BUY or RFQ button to purchase L17DTZF15RGL77SDA15S from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L17DTZF15RGL77SDA15S?
You can download the L17DTZF15RGL77SDA15S datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L17DTZF15RGL77SDA15S?
AMPHENOL COMMUNICATIONS SOLUTIONS
