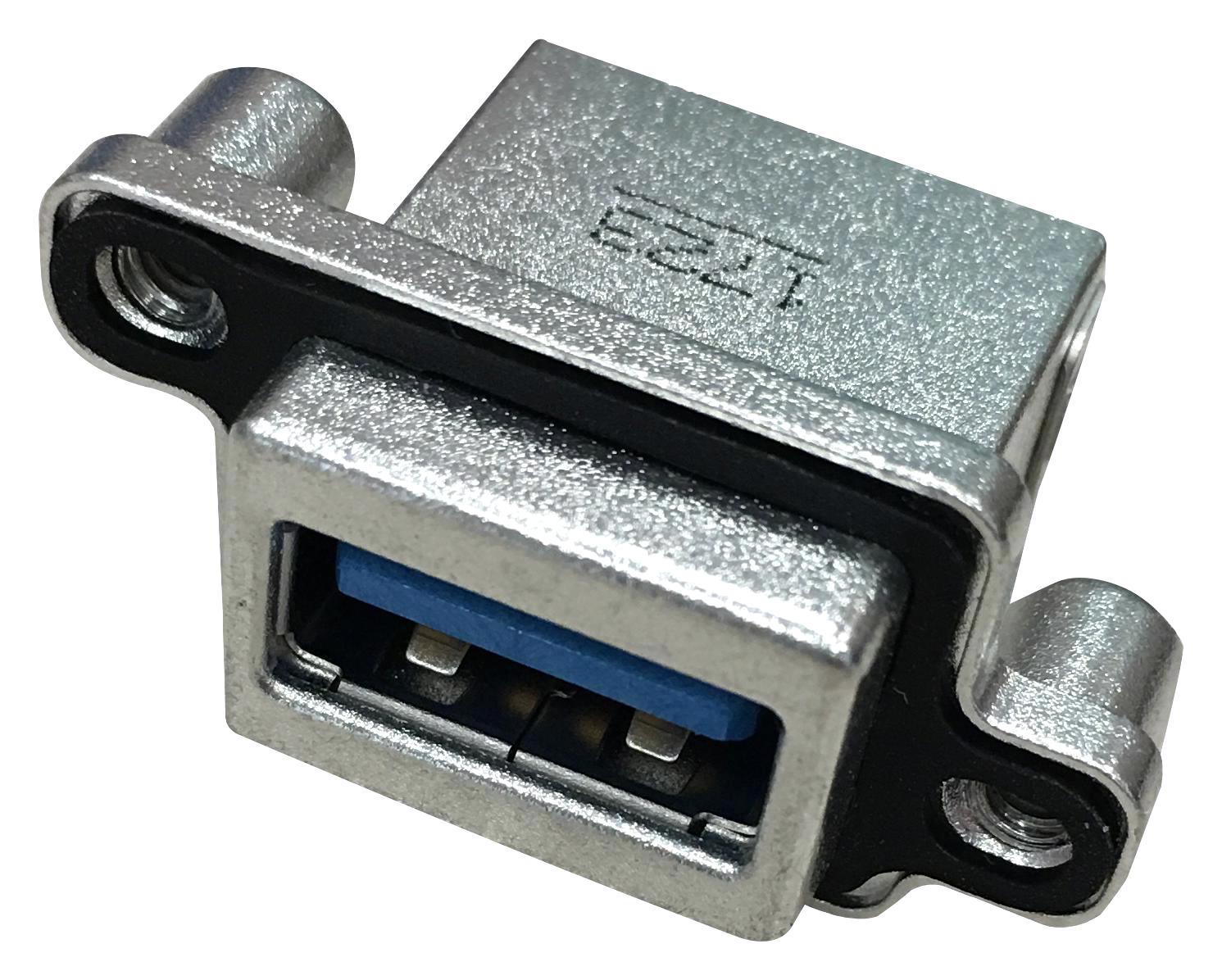

AMPHENOL COMMUNICATIONS SOLUTIONS MUSBR359330 Rugged USB Connector
The rugged USB 3.0 standard 'A' receptacle features a diecast zinc alloy shell with matte tin over nickel plating, high-temperature resistant thermoplastic housing, and stainless steel shield. Designed for reliable performance, it offers a current rating of 1.8A max at positions 1 & 4, and 0.25A at others. Its environmental sealing achieves IP67 rating, ensuring protection against dust and water. Suitable for industrial and professional applications, it includes thread, dust cover options, and a vertical PCB tail for secure mounting, with a temperature operating range of -40°C to +105°C.
AMPHENOL COMMUNICATIONS SOLUTIONS MUSBR359330 Rugged USB Connector Specifications:
- Outer Shell: Diecast Zinc Alloy, Matte Tin over Nickel Plated
- Contacts: Phosphor Bronze & Copper Alloy, Gold over Nickel Plating, Matte Tin Tails
- Housing: Engineering Thermoplastic, Flammability Rating UL94V-0, Color: Blue (mating area), Black (others)
- USB Shield & Rear Cover: Stainless Steel, Passivated
- Gasket: Conductive Silicone Rubber, Black
- Temperature Range: -40°C to +105°C
- Ingress Protection: IP67 rated for dust and water resistance
- Current Rating: 1.8A max (positions 1 & 4), 0.25A max (others)
- Contact Resistance: Max 30 milliohms (positions 1 & 4), Max 50 milliohms (others)
Buy the Amphenol Series Rugged USB 3.0 A Receptacle: MUSBR359330
Experience dependable data transfer with the Rugged USB Connector featuring IP67 sealing, sturdy diecast zinc shell, and high-temperature thermoplastic housing. Designed for industrial environments, it offers a secure vertical PCB mount, thread options, and dust covers for enhanced protection. Its high-current capacity and excellent environmental resistance make it perfect for demanding applications requiring robust connectivity. OEMs and engineers can trust this connector for durability, safety, and excellent electrical performance, ensuring reliable operation in harsh conditions.
Order your Amphenol Series Rugged USB 3.0 A Receptacle today and ensure your connections are protected with high durability and reliable sealing.
