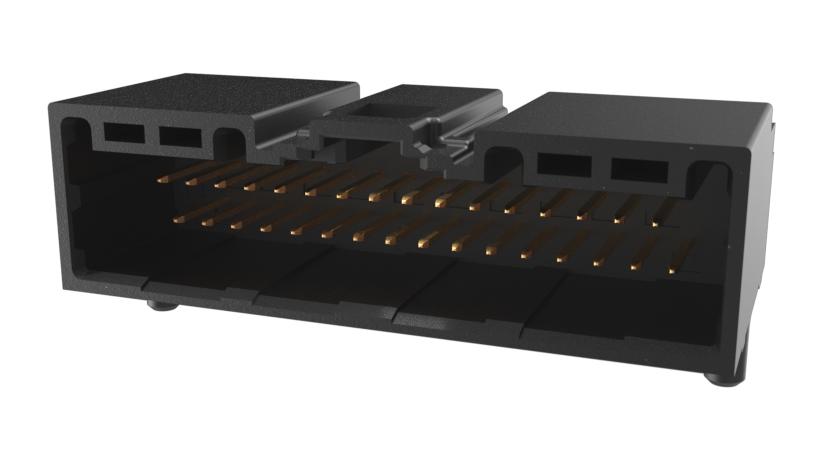

AMPHENOL COMMUNICATIONS SOLUTIONS 10153118132KALF WireLock Connector System
The Amphenol WireLock connector system is a robust and reliable solution for automotive and other demanding applications. This 1.80mm pitch wire-to-board connector system features a compact design, low mating force, and a double-row configuration with four coding types for enhanced visual mismatching prevention. It supports a wide range of wire gauges and offers various configurations, including vertical and horizontal TH and SMT options. The WireLock system is designed for space-constrained environments and provides excellent performance with features like Terminal Position Assurance (TPA) and Connector Position Assurance (CPA).
AMPHENOL COMMUNICATIONS SOLUTIONS 10153118132KALF WireLock Connector System Specifications:
- Product Specification: GS-12-1535
- PCB Termination: 1.6mm and 2.0mm
- Voltage Rating: 48V AC/DC
- Insulation Resistance: 100M Ω min.
- Contact Resistance: 25m Ω max. (initial)
- Current Rating: 3A
- Low Level Contact Resistance: < 15m Ω
- Dielectric Withstand Voltage: 1000V AC
- Temperature Rise: +55°C max. for 5.0A
- Durability: 10 cycles (tin plated)
- Mating/Un-mating Force: 75N max.
- Terminal Insertion Force: <5N max./pin
- Terminal Retention Force: 20N min. (before testing). 40N min. (after testing)
- Operating Temperature Range: -40°C to +105°C
- Material (Board Connector): Copper alloy
- Material (Housing): High Temperature UL 94V-0
- Material (Crimping Terminal): Phosphor bronze alloy/bass (tin plated)
- UL Listing: UL E66906
- Packaging (PCB Header): Tape and reel or Tray
- Packaging (Receptacle Housing): Tray
- Packaging (Crimping Terminal): Reel
- Hand Tool Part Number: 10159164-001LF
- Application Specification: GS-20-0594
- Target Markets: BMS, OBC, MCU, Gateway, Lighting, ADAS, RADAR, Robotics
