Amphenol-Communications-Solutions L17MHDM09L717DE09PST Screw Type Connector
The Umax MHDM screw type connector is designed for reliable signal and power connections in industrial, automation, and electronic equipment. Constructed from zinc with nickel plating, it offers excellent durability and corrosion resistance. The connector features a steel shell with tin plating, high-quality machined brass pins with gold flash over nickel, and an insulator made of glass-filled thermoplastic compliant with UL94 V-0. Suitable for wire sizes up to AWG 18, it supports operating temperatures from -55°C to +85°C, with withstand voltage exceeding 1000V RMS, making it ideal for demanding applications. Its EMI shielding and re-openable design add to its versatility.
Amphenol-Communications-Solutions L17MHDM09L717DE09PST Screw Type Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -40°C to +120°C (D-Sub Hood), -55°C to +85°C (Connector)
- Cable Entry: Top Entry
- Thumbscrews: UNC 4-40 (Standard)
- Cable O.D: Up to 13mm
- Insulator: Glass filled thermoplastic UL94 V-0
- Shell: Steel, Tin Plated
- Contact Pins: Machined Brass with 15µm Gold plating over Nickel
- Wire Size: AWG 18
- Withstanding Voltage: >1000V RMS to 50Hz for 1 minute
- Current Rating: 7.5A
- Insulator Resistance: >5000MΩ
- Features: 360° EMI Shielding, Re-openable, Available in sizes 9, 15, 25
- Dimensions (Size 9): Length 32.2mm, Width 41.3mm, Height 15.4mm
- Dimensions (Size 15): Length 40.6mm, Width 43.3mm, Height 15.4mm
- Dimensions (Size 25): Length 54.5mm, Width 49.5mm, Height 15.4mm

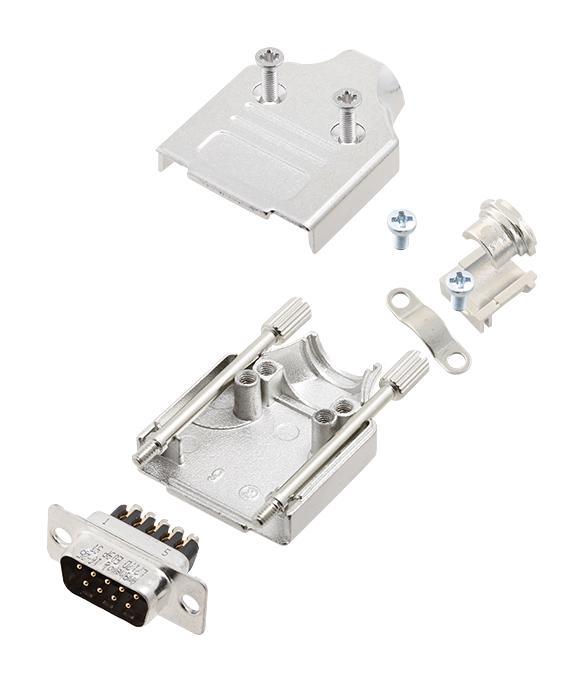

Buy the Buy Amphenol MHDM Screw Connector Part Number L17MHDM09 Online
Order the Amphenol MHDM screw type connector online today and enjoy high-quality, durable connections suitable for industrial and electronic applications. Featuring a steel shell, gold-plated contacts, and EMI shielding, this connector ensures reliable performance with a working temperature range from -55°C to +85°C. Its re-openable design and compatibility with wire sizes up to AWG 18 make it versatile and easy to install. Perfect for signal, data, and power connections in challenging environments, providing long-lasting performance and compliance with industry standards.
Get Amphenol MHDM09 screw connector today—designed for high durability, EMI shielding, and reliable connections in demanding environments.
Frequently Asked Questions
Where can I buy Amphenol-Communications-Solutions L17MHDM09L717DE09PST?
You can click on the BUY or RFQ button to purchase L17MHDM09L717DE09PST from an authorized Amphenol-Communications-Solutions distributor.
How do I troubleshoot issues or seek technical support for part L17MHDM09L717DE09PST?
You can download the L17MHDM09L717DE09PST datasheet or visit the Amphenol-Communications-Solutions website for support.
Who is the manufacturer of L17MHDM09L717DE09PST?
Amphenol-Communications-Solutions
