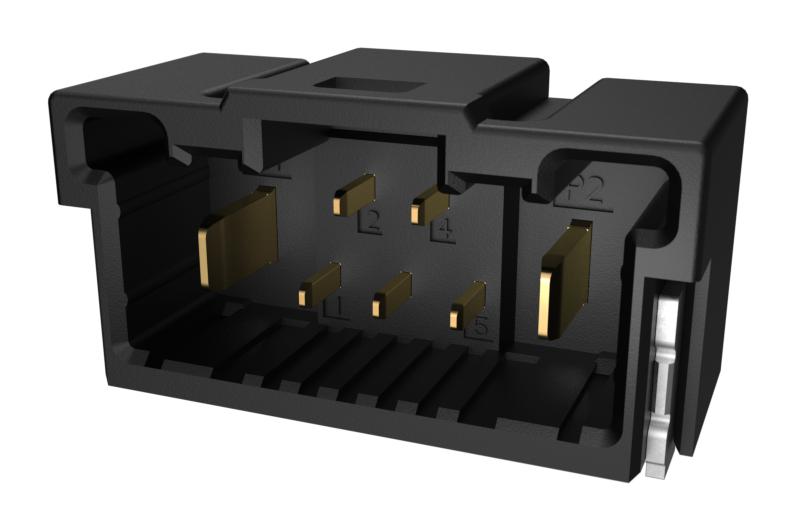

AMPHENOL COMMUNICATIONS SOLUTIONS 10162688205202CLF Wire-to-Board Connector
The ComboLock Wire-to-Board Connector System by Amphenol ICC is a compact, reliable solution designed for limited space applications, offering hybrid power and signal configurations with active latching. It supports various wire sizes from 26AWG to 18AWG for power and 30AWG to 24AWG for signal, with a maximum current capacity of 10A per power pin and 1.5A per signal pin. Suitable for vertical and right-angle mounting, it ensures secure mating, increased grip force, and long-term durability for diverse markets including automation, consumer devices, and robotics. Certified to UL standards, it features durable materials like PA66 housing and phosphor bronze terminals.
AMPHENOL COMMUNICATIONS SOLUTIONS 10162688205202CLF Wire-to-Board Connector Specifications:
- Housing Material: PA66 UL 94V-0
- Crimping Terminal: Phosphor bronze alloy
- Voltage Rating: 50V AC/DC
- Dielectric Withstand Voltage: 500VAC
- Insulation Resistance: 100MQ
- Contact Resistance: <40MQ
- Current Rating: 10A for power pin, 1.5A for signal pin
- Wire Sizes: 26AWG to 18AWG (power), 30AWG to 24AWG (signal)
- Operating Temperature: -40°C to +105°C
- Durability: 30 cycles
- Mating Force: up to 8N (power), up to 3N (signal)
- Housing Retention Force: ≥9.8N
- Packaging: Tape and reel (PCB header), Bag (receptacle housing), Reel (crimping terminal)
- Approvals: UL pending
Buy the Buy Amphenol ICC ComboLock Wire-to-Board Connector Part Number 10162688205202CLF Online
Purchase the Amphenol ICC ComboLock wire-to-board connector online now for reliable power and signal transmission in compact designs. Designed with hybrid power and signal configurations supporting 26-18AWG power wires and 24-30AWG signal wires, it provides a maximum of 10A per power pin and 1.5A per signal pin. Suitable for vertical and right-angle mounting, it features an active latch, durable materials, and UL certification pending, making it ideal for automation, consumer electronics, and industrial applications. Ensure a secure, durable connection for your project with easy online ordering.
Get Amphenol ICC ComboLock wire-to-board connector today—engineered for secure mating and long-lasting performance in limited space applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10162688205202CLF?
You can click on the BUY or RFQ button to purchase 10162688205202CLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10162688205202CLF?
You can download the 10162688205202CLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10162688205202CLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
