AMPHENOL COMMUNICATIONS SOLUTIONS 87606303LF Wire-to-Board Connector
The product is a versatile wire-to-board connector designed for reliable electrical connections in electronic assemblies. Featuring dual-beam contacts that enable low insertion force and high mating cycle durability, it is suitable for space-constrained applications with a low profile housing. Constructed with high-temperature thermoplastic and phosphor-bronze contacts, it offers excellent electrical performance with a current rating of up to 3A per contact. The connector supports environmental resilience, including operation from -65°C to +125°C, and provides easy mating with stackable, stackable and passive latching features for secure connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 87606303LF Wire-to-Board Connector Specifications:
- Housing: High temperature thermoplastic (UL94V-0)
- Contact Material: Phosphor-bronze
- Plating: Gold or tin over nickel
- Current Rating: 3A DC max. per contact
- Insulation Resistance: 50,000MΩ min.
- Contact Resistance: 15MΩ max. initial, 20MΩ after environmental tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 50 Gold, 25 Tin
- Insertion Force: Max 450gf Gold, Max 500gf Tin-lead
- Withdrawal Force: Min 30gf
- Insertion Depth: 4.85 mm min.
- Environmental Resistance: RoHS compliant, UL94V-0 flammability rating
- Dimensions and physical details vary by specific model (stackable, stack-to-stack)
- Packaging: Plastic bags, tubes, reel options available
- Compatible with vapor-phase, IR reflow, and wave soldering processes

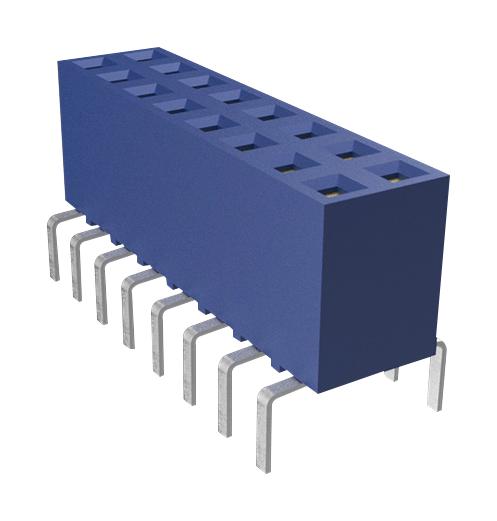

Buy the Buy FCI Wire-to-Board Connector Part Number 87606303LF Online
Discover the high-performance wire-to-board connector with dual-beam contacts, excellent environmental resilience, and stackable, low-profile design. Ideal for compact electronic assemblies, it ensures secure, long-lasting electrical connections with a current rating of up to 3A per contact. Constructed from high-temperature thermoplastic and phosphor-bronze contacts with gold or tin plating, it supports a wide temperature range from -65°C to +125°C. Easy to assemble and compatible with multiple soldering processes, this connector provides reliable operation in demanding applications.
Buy FCI 87606303LF now and experience unmatched reliability and performance for your high-temperature, space-saving electrical connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 87606303LF?
You can click on the BUY or RFQ button to purchase 87606303LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 87606303LF?
You can download the 87606303LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 87606303LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
