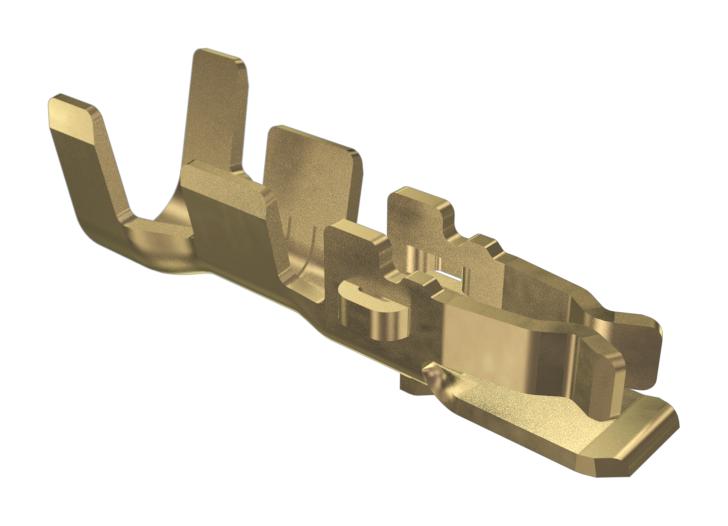

AMPHENOL COMMUNICATIONS SOLUTIONS 10162696001LF wire-to-board connector
The ComboLock Wire-to-Board Connector System by Amphenol ICC is a compact, modular solution designed for limited space applications, providing reliable power and signal connections. It supports hybrid configurations with 1.00mm pitch signal and 3.00mm pitch power, capable of carrying up to 10A per power pin and 1.5A per signal pin. Features include active latching, multiple wire size compatibility from 26AWG to 18AWG for power and 30AWG to 24AWG for signal, and housing with positive locking. The connector suits various applications like automation, robotics, and household devices, with UL approval pending.
AMPHENOL COMMUNICATIONS SOLUTIONS 10162696001LF wire-to-board connector Specifications:
- Housing Material: PA66 UL 94V-0
- Contact Material: Phosphor bronze alloy
- Voltage Rating: 50V AC/DC
- Dielectric Withstand Voltage: 500VAC
- Insulation Resistance: 100MQ
- Contact Resistance: < 40MQ
- Current Rating: 1.5A signal, 10A power
- Operating Temperature: -40°C to +105°C
- Durability: 30 mating cycles
- Mating Force: 3N max for signal, 8N max for power
- Housing Retention Force: ≥9.8N
- Wire Sizes: 26AWG-18AWG (power), 30AWG-24AWG (signal)
Buy the Amphenol 10162696001LF – Reliable Hybrid Connectors for Industrial Applications
Experience the reliable, compact design of the Amphenol ICC ComboLock wire-to-board connector system, supporting multiple wire sizes and providing up to 10A power capacity. Ideal for automation, robotics, and household devices, it features active latching and holds secure connections in limited spaces. Manufactured with high-quality materials, its UL-rated components ensure safety and durability across various applications, making it a top choice for engineers seeking robust, space-efficient connectivity solutions.
Order your Amphenol Series 10162696001LF connector today and ensure your projects have dependable, space-saving power and signal connections designed for industrial needs.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10162696001LF?
You can click on the BUY or RFQ button to purchase 10162696001LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10162696001LF?
You can download the 10162696001LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10162696001LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
