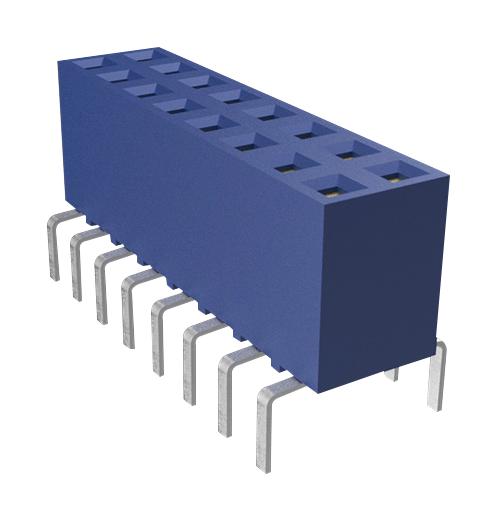

AMPHENOL COMMUNICATIONS SOLUTIONS 87606307LF Vertical Receptacle
The product is a low-profile vertical receptacle designed for reliable board-to-board connections, featuring a dual beam contact for low insertion force and signal protection. Made with high-temperature, UL94V-0 rated thermoplastic housing and phosphor-bronze pins, it supports a maximum current of 3A per contact, with superior environmental resistance suitable for temperatures from -65°C to +125°C. Its robust mechanical design includes 200 mating cycles and precise insertion depth, ensuring durability and ease of assembly for various electronic applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 87606307LF Vertical Receptacle Specifications:
- Housing Material: Thermoplastic polyester, UL94V-0, blue for surface mount and grey for through hole versions
- Pin Material: Phosphor-bronze with gold or tin plating over 1.27μm nickel
- Current Rating: 3A DC max. per contact, 2A DC for fully energized connector
- Insulation Resistance: 1x 10^9Ω min.
- Contact Resistance: 15MΩ max., 20MΩ after environmental tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 200
- Insertion Force: 1.50 N (150gf) max. per gold contact
- Withdrawal Force: 0.30 N (30gf) min. per gold contact
- Insertion Depth: Top entry 3.6mm min. to 6.81mm max., bottom entry 7mm min.
- Environmental Resistance: RoHS compliant, suitable for wave soldering and vapor-phase processes
- Dimensions: Vary with series; typical insertion depth and terminal lengths as specified
Buy the Fci Series Vertical Receptacles: BUS-12-055: 87606307LF
Upgrade your electronic assembly with Fci's vertical receptacle featuring a robust dual beam contact and high-temperature thermoplastic housing. Designed for 200 mating cycles and operating in temperatures from -65°C to +125°C, this connector ensures durability and signal integrity. Its precise insertion and withdrawal forces simplify installation and maintenance. RoHS compliant, it accommodates various PCB configurations, making it ideal for industrial, automation, or communication equipment. Order online today for fast delivery and exceptional reliability.
Buy Fci 87606307LF now and experience unmatched reliability and performance for high-temperature, durable board-to-board connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 87606307LF?
You can click on the BUY or RFQ button to purchase 87606307LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 87606307LF?
You can download the 87606307LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 87606307LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
