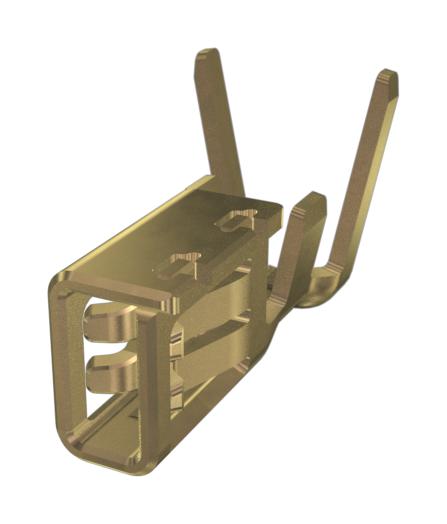

AMPHENOL COMMUNICATIONS SOLUTIONS 10162697002LF Hybrid Wire-to-Board Connector
The ComboLock® Wire-to-Board Connector System by Amphenol ICC offers a modular, reliable, and compact solution designed for limited space applications. It supports hybrid power and signal configurations with a 1.00mm pitch for signal and 3.00mm pitch for power, ensuring secure mating and increased board grip force. Suitable for various wire sizes from 26AWG to 18AWG for power, and 30AWG to 24AWG for signal, it provides a maximum current capacity of 10A per power pin and 1.5A per signal pin. With quick connect and lock features, it is ideal for automation, robotics, and consumer electronics. Certified for high performance with UL pending approval.
AMPHENOL COMMUNICATIONS SOLUTIONS 10162697002LF Hybrid Wire-to-Board Connector Specifications:
- Housing Material: PA66 UL 94V-0
- Contact Material: Phosphor bronze alloy
- Voltage Rating: 50V AC/DC
- Dielectric Withstand Voltage: 500VAC
- Insulation Resistance: 100MQ
- Contact Resistance: < 40MQ
- Durability: 30 cycles
- Mating Force: 3N max./signal pin; 8N max./power pin
- Housing Retention Force: 9.8N min.
- Wire Sizes: 26AWG to 18AWG for power; 30AWG to 24AWG for signal
- Operating Temperature: -40°C to +105°C
- Current Rating: 10A for power, 1.5A for signal
- Voltage Rating: 50V AC/DC
Buy the Amphenol Series ComboLock Wire-to-Board Connector: 10162697002LF
Enhance your electronic applications with the compact, high-reliability ComboLock wire-to-board connector. Featuring a hybrid power and signal configuration, it supports wire sizes from 26AWG to 18AWG for power and 30AWG to 24AWG for signals, with a maximum current of 10A per power pin and 1.5A per signal pin. Its durable design withstands 30 mating cycles and operates within a temperature range of -40°C to +105°C. Suitable for automation, robotics, and consumer devices, order online today for quality and dependability.
Order your Amphenol Series ComboLock 10162697002LF connector today and ensure a secure, space-saving connection solution for your electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10162697002LF?
You can click on the BUY or RFQ button to purchase 10162697002LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10162697002LF?
You can download the 10162697002LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10162697002LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
