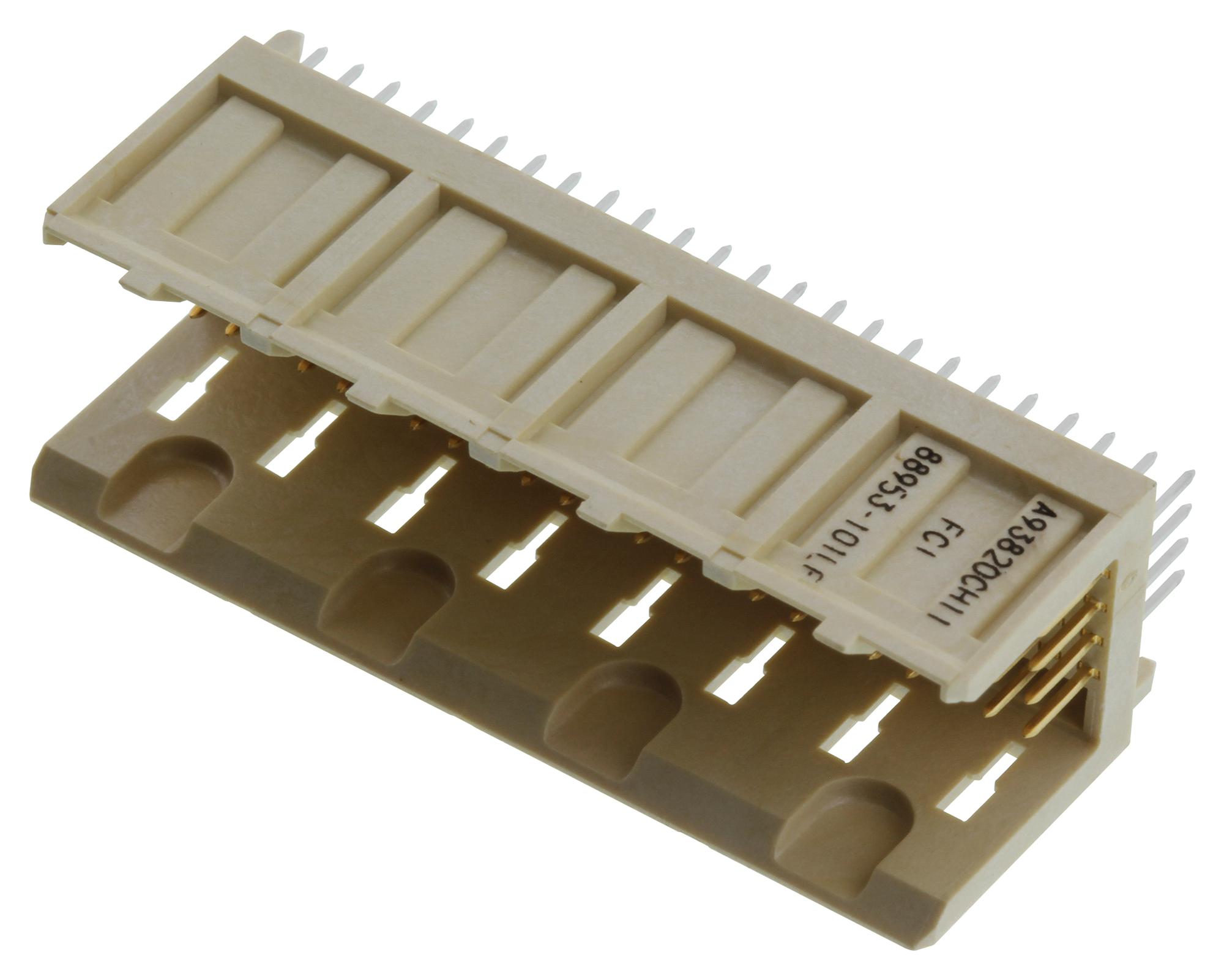

AMPHENOL COMMUNICATIONS SOLUTIONS 88953101LF Backplane Connector
Metral vertical headers and right angle receptacles offer high-density, modular backplane connector solutions compliant with IEC 61076-4-104 and Telcordia GR-1217-CORE standards. Designed with 250 contacts per 100mm, these connectors feature versatile termination options including press-fit, solder-to-board, and pin-in-paste. They support signal integrity with dual beam contact design for vibration resistance and feature varying pin lengths for sequential mating. With high temperature thermoplastic housings and robust electrical specs, these connectors are suitable for industrial, data, medical, and telecom applications, providing reliable connectivity and flexible configurations in multiple sizes and modules.
AMPHENOL COMMUNICATIONS SOLUTIONS 88953101LF Backplane Connector Specifications:
- Housing: High temperature thermoplastic, UL94V-0
- Contact Material: Copper Alloy
- Plating: Performance-based plating
- Dielectric Withstanding Voltage: 1000Vrms
- Insulation Resistance: 5000M@ min.
- Current Rating: 1A per contact
- Operating Temperature: -55°C to +125°C
- Contact Rows: 4 and 5 row versions available
- Contact Pitch: 2mm
- Contacts per 100mm: 250
- Termination Options: Press-fit, Solder-to-Board, Pin-in-Paste
- Mechanical: Mating Force max 0.45N, Unmating Force min 0.15N per pin
- Standards: IEC 61076-4-104, Telcordia GR-1217-CORE
- Environmental: Suitable for industrial, medical, data and telecom markets
- Packaging: Tube for press-fit and solder, Tape and Reel for pin-in-paste
Buy the Buy FCI Backplane Connectors Part Number 88953101LF Online
Discover the high-quality FCI backplane connectors, featuring modular designs and various termination methods, suitable for industrial, data, medical, and telecom applications. With high contact density, reliable electrical performance, and compliance with industry standards, these connectors ensure efficient and secure connections. Whether for complex backplane systems or modular assemblies, purchase online for fast delivery and expert support. Enhance your electronic assemblies with durable, scalable, and high-performance backplane connectors designed to meet your demanding technical needs.
Buy FCI 88953101LF high-density backplane connector now and experience reliable signal integrity and flexible modular designs for industrial and telecom use.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 88953101LF?
You can click on the BUY or RFQ button to purchase 88953101LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 88953101LF?
You can download the 88953101LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 88953101LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
