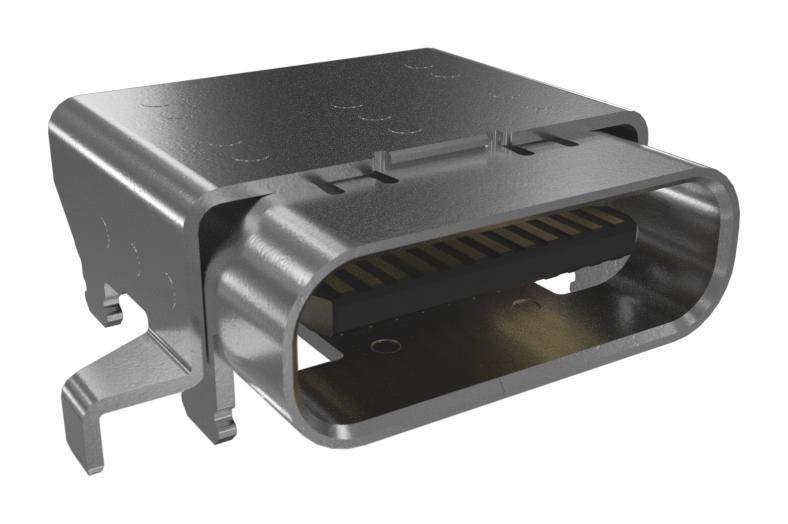

AMPHENOL COMMUNICATIONS SOLUTIONS 12402056E512A USB 4 Type C Connector
The Amphenol USB 4 Gen 3 Type C connector combines power charging, data transfer, and video/audio capabilities in a single, reversible connector. It supports high-speed data transmission rates of up to 40Gbps and power delivery up to 100W, making it suitable for a wide range of applications including storage devices, laptops, tablets, docking stations, peripherals, automotive infotainment systems, and home entertainment setups. The connector features a robust design with a stainless steel outer shell and copper alloy terminals, ensuring durability and reliable performance with up to 10,000 mating cycles. It is RoHS compliant and halogen-free, meeting environmental standards.
AMPHENOL COMMUNICATIONS SOLUTIONS 12402056E512A USB 4 Type C Connector Specifications:
- Power Delivery: Up to 100W
- Data Transmission Rate: Up to 40Gbps
- Housing Material: LCP UL94-V0
- Terminal Material: Copper alloy
- Mid Plate Material: Stainless steel
- Outer Shell Material: Stainless steel
- Main Shell Material: Stainless steel
- Small Shell Material: Stainless steel
- Durability: 10000 cycles
- Operating Temperature Range: -40°C to +85°C
- Insertion Force: 5~20 N
- Extraction Force: 8~20 N
- Contact Resistance: 40m Ω max.
- Insulation Resistance: 100m Ω min.
- Contact Current Rating: 5A max.
- Dielectric Withstanding Voltage: 100VAC
- Target Markets: ['Automotive Infotainment', 'Notebook Docking', 'Tablet', 'Peripherals', 'Home Entertainment', 'Storage']
