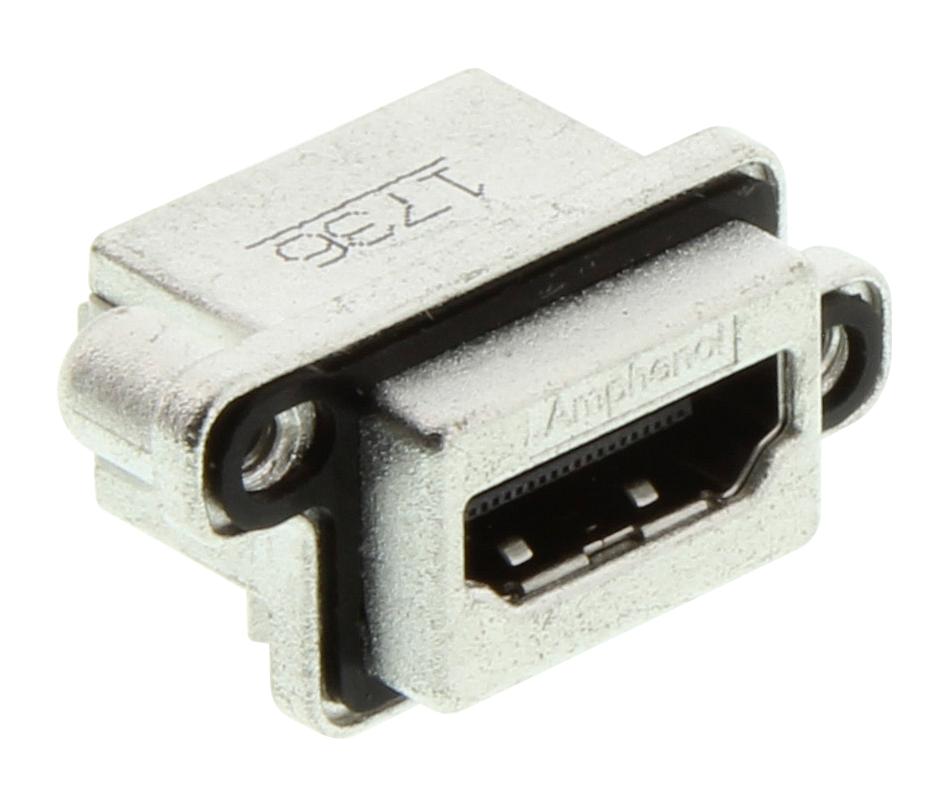

AMPHENOL COMMUNICATIONS SOLUTIONS MHDRA51130 Rugged HDMI Receptacle
The rugged HDMI Type A receptacle features a vertical PCB tail, IP67 environmental sealing, and is constructed with diecast zinc alloy and stainless steel for durability. It has a single port design with a high-temperature thermoplastic housing rated UL94V-0, making it suitable for harsh environments. The connector supports a current of 0.5A, voltage of 40VAC RMS, and operates within -55°C to +105°C. It includes optional dust covers, threaded sealing options, and conducts signals via gold-plated copper contacts, ideal for industrial and outdoor applications.
AMPHENOL COMMUNICATIONS SOLUTIONS MHDRA51130 Rugged HDMI Receptacle Specifications:
- Housing Material: Diecast zinc alloy, matte tin over nickel plated
- Contacts: Copper alloy, gold-plated with 0.76μm (30') gold over nickel
- Operating Temperature: -55°C to +105°C
- Current Rating: 0.5 Amperes
- Voltage Rating: 40 VAC RMS
- Environmental Seal: IP67 for dust and water resistance
- Thread Options: #4-40 UNC or M3 x 0.5
- Housing Flammability Rating: UL94V-0
- Shield Material: Stainless steel, passivated
- Dust Cover: Silicon rubber with nickel-plated brass bushing, order separately
- Compatibility: HDMI Type 'A', vertical PCB tail, single port
- Connectors meet RoHS compliance
- Certification: IEC 60529 IP67, UL, CSA
Buy the Amphenol Series Rugged HDMI Type A: MHDRA51130
Enhance your industrial or outdoor audio-visual installations with this rugged HDMI Type A connector. Crafted with durable zinc alloy and stainless steel shield, it offers IP67 sealing for water and dust resistance. With gold-plated contacts and a temperature range from -55°C to +105°C, it ensures reliable signal integrity and high performance in harsh conditions. The connector supports 0.5A current and 40VAC RMS voltage, with optional dust covers for additional protection. Easy to install with threaded sealing options, making it ideal for demanding environments.
Order your Amphenol Series Rugged HDMI Type A MHDRA51130 today and ensure reliable, high-performance connections in demanding environments.
