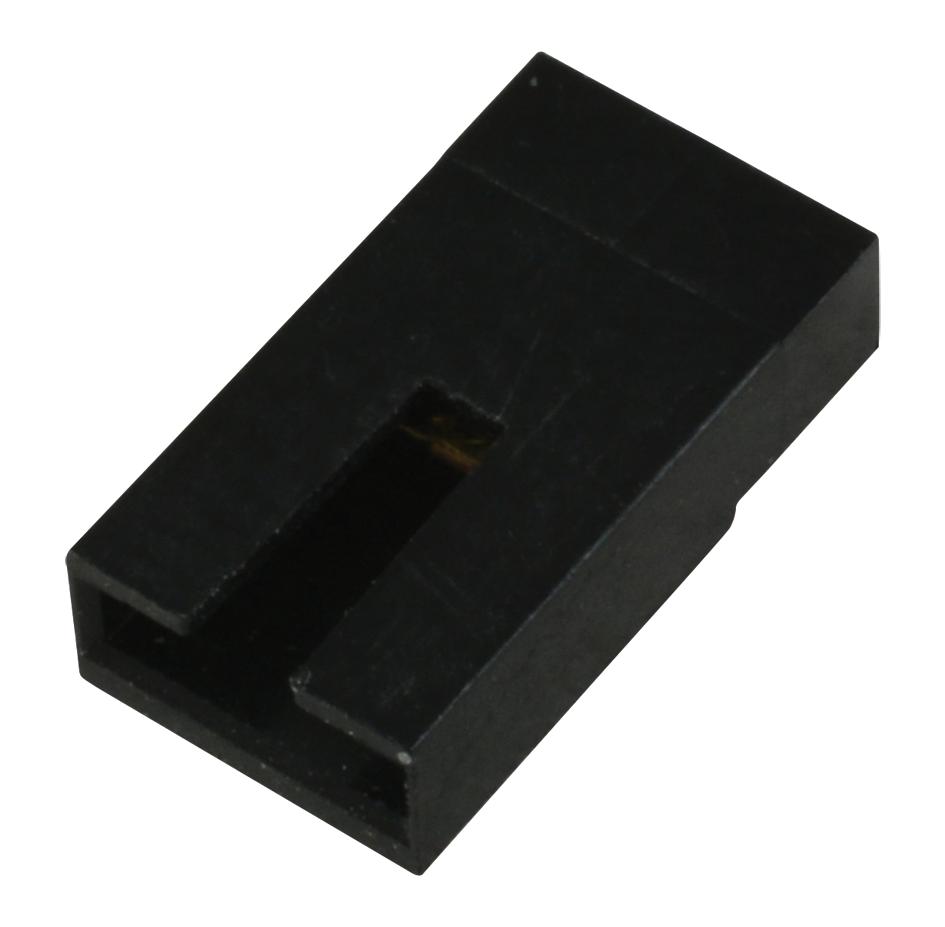

AMPHENOL COMMUNICATIONS SOLUTIONS 71363302LF Wire Connector
The product is a wire-to-board connector designed for reliable electrical connections in various electronic assemblies. Featuring a dual-beam contact design, the connector ensures low insertion force and high durability for repeated mating cycles. Its high-temperature thermoplastic housing is UL94V-0 rated, providing flame resistance and signal integrity. The contact materials include phosphor-bronze with gold or tin plating over nickel, offering excellent conductivity and corrosion resistance. Suitable for applications requiring up to 3A current per contact, it supports environmental resilience with an operating temperature range from -65°C to +125°C and dielectric withstand voltage of 1000V RMS. Compact and stackable, these connectors facilitate efficient PCB mounting with multiple configurations available, such as single and double row designs, and are compatible with wave soldering and reflow processes.
AMPHENOL COMMUNICATIONS SOLUTIONS 71363302LF Wire Connector Specifications:
- Housing: Glass filled thermoplastic polyester, UL94V-0 rated
- Pin Material: Phosphor-bronze
- Plating: Gold or tin over nickel
- Current Rating: 3A max. per contact
- Insulation Resistance: 1x 10^9Ω min.
- Contact Resistance: 15mΩ max. initial, 20mΩ max. after environmental tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 200
- Insertion Force: 1.50 N max. per gold contact
- Withdrawal Force: 0.30 N min. per gold contact
- Insertion Depth: 3.6mm to 6.7mm depending on model
- Flammability Rating: UL94V-0
- Operating Environment: Suitable for wave soldering, vapor-phase, and IR reflow soldering
- Dimensions vary with model; typical ins. thickness 0.381mm, pin size 0.62mm square
Buy the FCI Series Dubox Wire-to-Board Connector: 71363302LF
Purchase the FCI 71363302LF wire-to-board connector online today. Designed for high reliability and low insertion force, it features dual-beam contacts, gold or tin plating, and a thermoplastic housing rated UL94V-0. Suitable for environments from -65°C to +125°C, it offers excellent electrical performance with a dielectric voltage of 1000V RMS and current capacity of 3A per contact. Compact, stackable, and compatible with wave soldering and reflow processes, this connector ensures a secure, durable connection for your electronic projects.
Get FCI 71363302LF today—built for precision, durability, and reliable electrical connections in your electronic assemblies.
