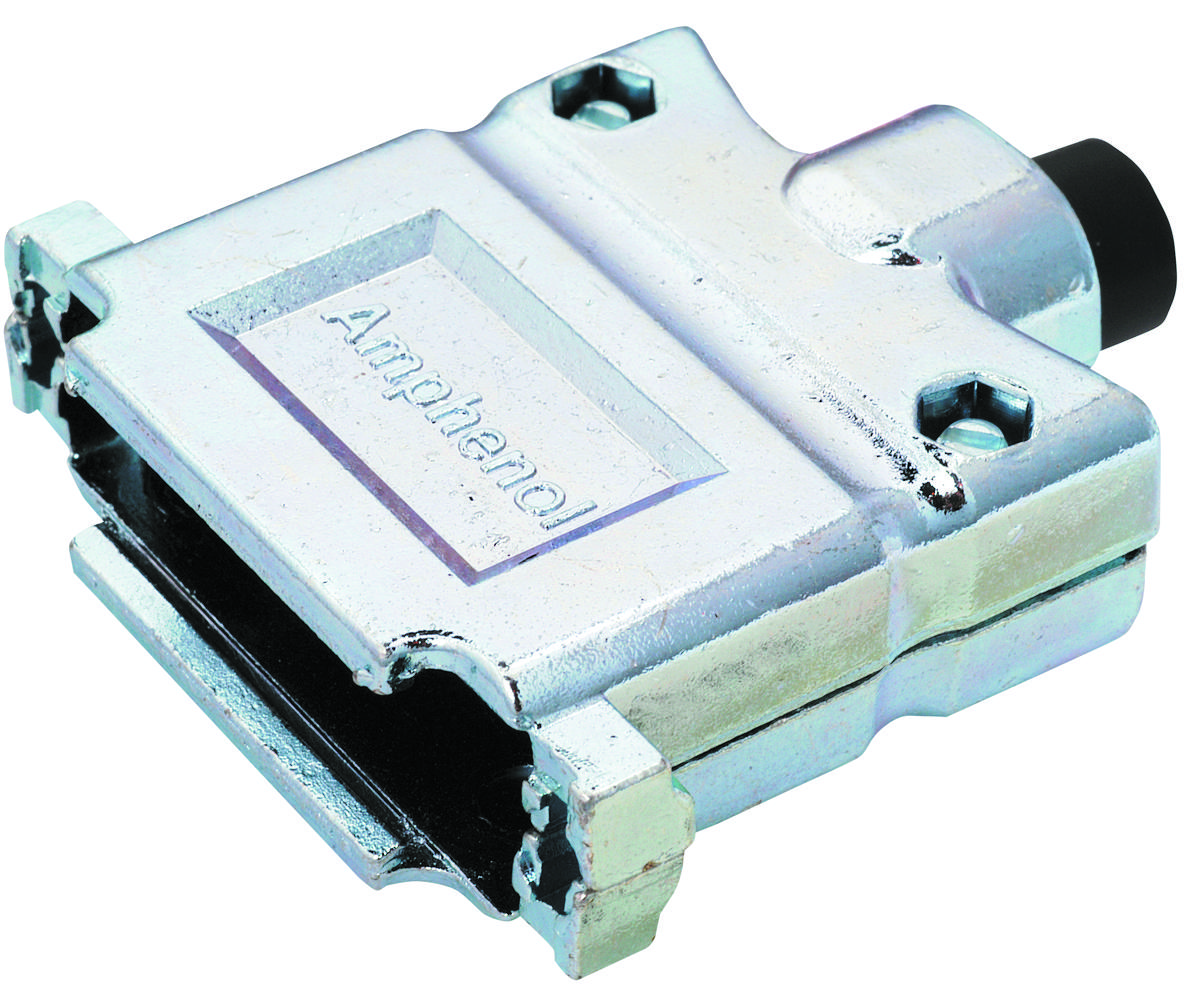

AMPHENOL COMMUNICATIONS SOLUTIONS 17E165725 metal backshell
The 17E165725 is a shielded metal backshell from the 17E series, featuring a die-cast zinc housing and a UL94V-0 PVC grommet. It supports B-size shells with 25 standard or 44 high-density contacts and is compatible with most standard and high-density D-subminiature connectors. Designed for cable assemblies requiring FCC 20780 compliance, it offers high durability and effective EMI/RFI shielding. The metal backshell also includes clear zinc-plated steel mounting hardware. Its rubber grommet compression insert ensures optimal shielding by pressing the cable’s shielding against the connector exit area. Suitable for industrial applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 17E165725 metal backshell Specifications:
- Material: Zinc alloy die-cast
- Finish: Zinc plated, hexavalent chromium free
- Grommet Material: UL94V-0 PVC
- Supports: B-size shells with 25 standard contacts or 44 high-density contacts
- Compatibility: Standard and high-density D-subminiature connectors
- Cable Range: Suitable for cables with outer diameters from .230 to .450 inches (5.84 to 11.43 mm)
- Dimensions: Length varies with connector size, typical width approximately 1.8 inches (45.72 mm)
- Mounting Hardware: Zinc-plated steel
- Ingress Protection: Effective EMI/RFI shielding
- RoHS Compliant: Yes
- Application: Industrial cable assemblies, electronic equipment
- Design: Straight exit with 4-40 threaded entry
- Standards: FCC 20780 compliant
Buy the Amphenol Series 17E Metal Backshell: 17E165725
Purchase the Amphenol Series 17E165725 metal backshell online today for reliable EMI/RFI shielding and durable construction. Made of zinc alloy with a UL94V-0 PVC grommet, it supports both standard and high-density D-sub connectors with 25 or 44 contacts. Designed to meet FCC 20780 standards, it features protective zinc plating, easy installation with 4-40 threaded entry, and compatible mounting hardware. Perfect for industrial applications requiring high durability, effective shielding, and reliable performance in demanding environments. Order now to streamline your cable assembly process.
Order your Amphenol Series 17E165725 metal backshell today and ensure robust EMI/RFI shielding for your industrial cable assemblies.
