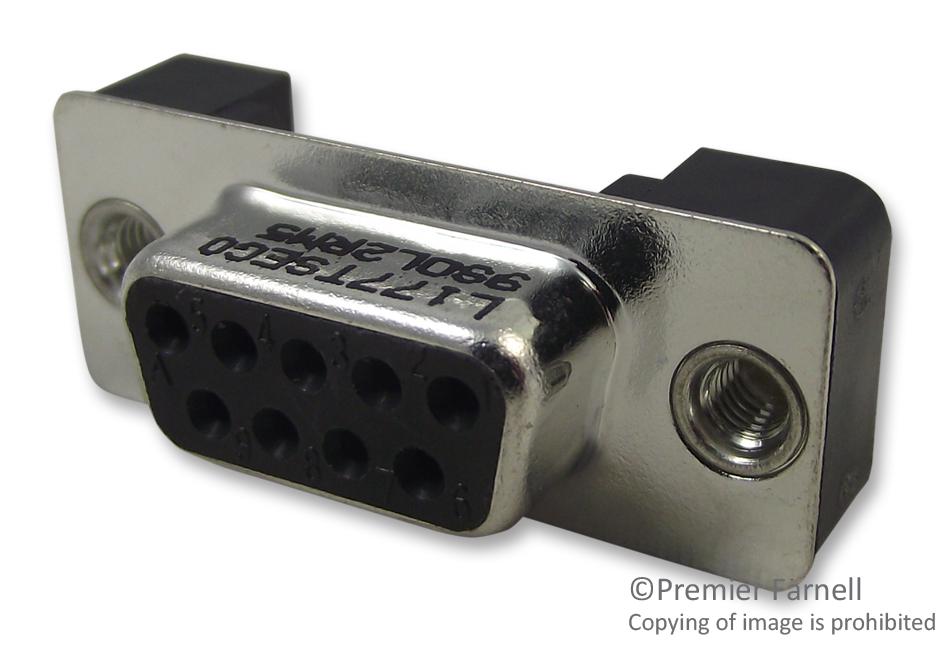

AMPHENOL COMMUNICATIONS SOLUTIONS L177TSEG09SOL2RM5 D-Sub Connector
This product is a high-reliability D-sub connector series featuring stamped and formed contacts with MIL C24308 FA compliance. It includes straight PCB termination, metal shells with tin over nickel plating, glass-filled thermoplastic insulators rated UL 94V-0, and copper alloy contacts with gold plating. Suitable for industrial, commercial, and telecom applications, it supports current ratings up to 5A, voltage ratings of 600V AC/rms, and withstands 1000V AC/rms. Operating temperature ranges from -55°C to +125°C, with various mounting options and dimensions for reliable performance.
AMPHENOL COMMUNICATIONS SOLUTIONS L177TSEG09SOL2RM5 D-Sub Connector Specifications:
- Shell Material: Steel, tin over nickel plating
- Insulator Material: Glass-filled thermoplastic, UL 94V-0
- Contacts: Copper alloy with gold plating, boardlock brass with nickel plating, screwlock brass with nickel plating
- Current Rating: 5A
- Voltage Rating: 600V AC/rms, withstand voltage 1000V AC/rms for one minute
- Insulation Resistance: 5000MQ
- Contact Resistance: 10m max
- Operating Temperature: -55°C to +125°C
- Mating and Unmating Force: 2+ kg (industrial standards), 3.05kg for 9 contacts
- Dimensions vary by shell size, typical length approximately 16.92mm to 69.34mm
- Mounting Options: Boardlock with threaded insert or front screwlock, compatible with #4-40 or M3 screws
- RoHS Compliant plating options available, including gold flash and tin, with specific shell and contact configurations
- Compliance with MIL C24308 FA standards, suitable for various industrial, commercial, and telecom connections
Buy the Amphenol L177TSEG09SOL2RM5 – Reliable D-Sub Connector for Industrial Applications
Order the Amphenol D-Sub Connector L177TSEG09SOL2RM5 online today and ensure reliable connectivity for industrial, telecom, and commercial systems. Designed with stamped and formed contacts and high-quality shell materials, this connector offers excellent performance, robust construction, and versatile mounting options to meet your project needs. Its specifications support high current and voltage ratings, with insulation resistance and operating temperature ranges that guarantee long-term durability in demanding environments. Ideal for applications requiring secure, high-quality electrical connections, purchase now for fast delivery and excellent support.
Get Amphenol L177TSEG09SOL2RM5 today—built for precision and long-lasting durability in harsh environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L177TSEG09SOL2RM5?
You can click on the BUY or RFQ button to purchase L177TSEG09SOL2RM5 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L177TSEG09SOL2RM5?
You can download the L177TSEG09SOL2RM5 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L177TSEG09SOL2RM5?
AMPHENOL COMMUNICATIONS SOLUTIONS
