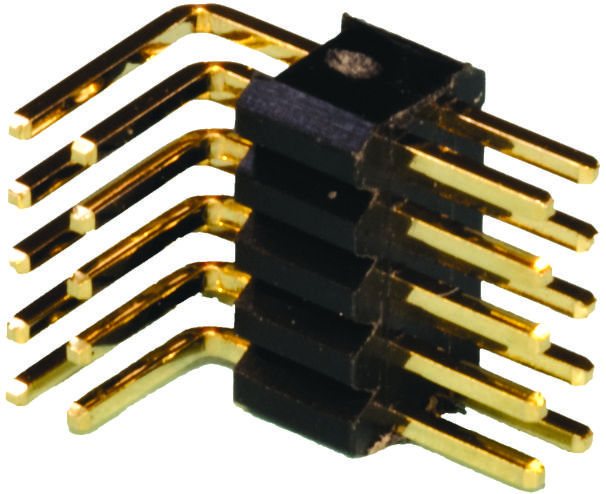

AMPHENOL COMMUNICATIONS SOLUTIONS 2002111200006T4LF Board-to-Board Connector
The Minitek127® standard board-to-board connector is a versatile, halogen-free modular system featuring a 1.27mm pitch, suitable for space-saving applications in industrial controls, medical equipment, data and communication devices. It offers models with straight, right-angle, and surface mount configurations, available in various plating options, including 15u”, 30u” GXT, and gold flash. With a current rating of 1.0 amp per contact, these connectors operate in temperatures from -55°C to +125°C, ensuring reliable electrical performance and durability for up to 100 mating cycles. Certified by UL, these connectors are ideal for PCB-to-PCB or cable connections, providing flexibility, safety, and efficient performance.
AMPHENOL COMMUNICATIONS SOLUTIONS 2002111200006T4LF Board-to-Board Connector Specifications:
- Material: Housing high temperature resin, Halogen free
- Contact base material: Copper Alloy
- Contact area finish: Gold flash, 10u”, 15u” GXT, 30u” GXT over nickel
- Solder area finish: Matte tin over nickel
- Electrical performance: Contact resistance 30 milliohms, Insulation resistance 1000Megohms minimum
- Current rating: 1.0 amp/contact
- Voltage rating: 125VAC
- Temperature range: -55°C to +125°C
- Mechanical durability: 100 mating cycles
- Mating force: 2.2N max/contact, Un-mating force: 0.2N min/contact
- Certifications: UL file no. E66906
- Packaging: Tape and reel, Tube
Buy the Buy FCI Minitek127 Board-to-Board Connector Part Number 2002111200006T4LF Online
Purchase the FCI Minitek127 board-to-board connector online for your industrial, medical, or communication device needs. This reliable, halogen-free connector offers modularity, various configurations, high temperature operation, and UL certification. Its space-saving design with a 1.27mm pitch supports extensive applications, including PCB-to-PCB or cable connections. With a current rating of 1.0 amp per contact and durable construction for 100 mating cycles, it ensures dependable electrical performance across a wide temperature range, making it the ideal solution for high-performance electronic assemblies.
Buy FCI Minitek127 Part Number 2002111200006T4LF now and experience unmatched reliability and performance suited for industrial and medical PCB connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 2002111200006T4LF?
You can click on the BUY or RFQ button to purchase 2002111200006T4LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 2002111200006T4LF?
You can download the 2002111200006T4LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 2002111200006T4LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
