AMPHENOL COMMUNICATIONS SOLUTIONS 2002111200010T4LF Board-to-Board Connector
The 20021112-00010T4LF is a 10-way, two-row through-hole board-to-board header with gold-plated copper alloy contacts and a 1.27mm pitch. Designed for industrial use, it features a mating length of 3.05mm and a tail length of 2.3mm, ensuring reliable, high-quality connections. This connector is suitable for applications such as industrial controls, medical devices, and data communication equipment where durability and precise connectivity are critical. Its reverse coding design minimizes incorrect mating, enhancing system reliability.
AMPHENOL COMMUNICATIONS SOLUTIONS 2002111200010T4LF Board-to-Board Connector Specifications:
- Number of Contacts: 10
- Configuration: Two-row, through-hole
- Pitch: 1.27mm
- Contact Material: Copper alloy
- Contact Finish: Gold-plated (10u” Gold) over nickel
- Tail Length: 2.3mm
- Mating Length: 3.05mm
- Voltage Rating: 125VAC
- Current Rating: 1.0 amp/contact
- Operating Temperature Range: -55°C to +125°C
- Durability: 100 mating cycles
- Insulation Resistance: 1000 Megohms minimum
- Contact Resistance: 30 milliohms
- Environmental Resistance: Humidity 95% for 96 hours, mixed flowing gas Class IIA

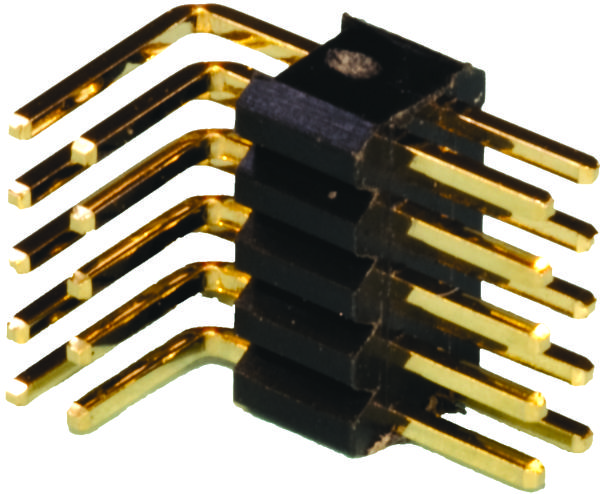

Buy the Buy FCI 20021112-00010T4LF Part Number 20021112-00010T4LF Online
Order the FCI 20021112-00010T4LF board-to-board connector online today for high reliability and precise connectivity. Featuring 10 contacts, 1.27mm pitch, and gold-plated copper alloy contacts, this connector ensures excellent electrical performance for industrial controls, medical equipment, and data communication systems. Its durable design supports up to 100 mating cycles, with insulation resistance of 1000 Megohms and operating temperature from -55°C to +125°C. Purchase now for robust, secure PCB connections that meet your demanding technical needs.
Get FCI 20021112-00010T4LF today—built for industrial durability and reliable PCB-to-PCB connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 2002111200010T4LF?
You can click on the BUY or RFQ button to purchase 2002111200010T4LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 2002111200010T4LF?
You can download the 2002111200010T4LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 2002111200010T4LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
