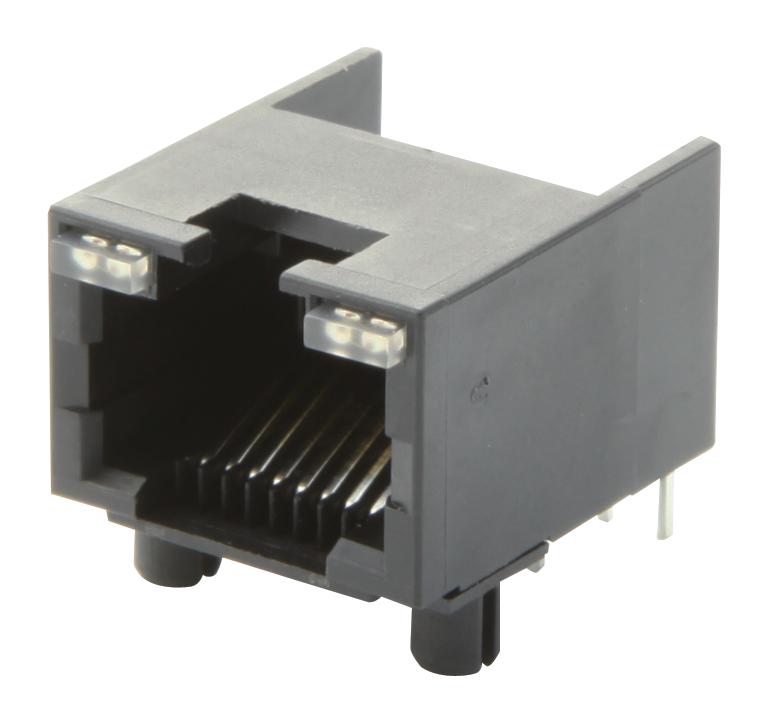

AMPHENOL COMMUNICATIONS SOLUTIONS RJE3718804A0 Modular Jack
The RJE37-188-04A0 from Amphenol Commercial Products is a low-profile modular jack featuring a single port with LED. It has an inverted latch for easy mating with standard plugs and eight positions with eight contacts (8P8C). Crafted from high-temperature black thermoplastic compliant with UL 94V-0, it uses phosphor bronze contacts with 50 micro-inch gold plating. The contact resistance is a maximum of 20 milliohms, and the insulation resistance is at least 500 megaohms at 500V DC for up to 2 minutes. It supports a current of 1.5A per contact and a voltage of 125V AC. The through-hole mounted jack operates effectively in temperatures ranging from -55°C to +85°C and is rated for 750 mating cycles. Ideal for communications and networking applications.
AMPHENOL COMMUNICATIONS SOLUTIONS RJE3718804A0 Modular Jack Specifications:
- Housing Material: Engineering thermoplastic, UL 94V-0 rated, black color
- Contacts: Phosphor bronze, 50 micro-inch gold plating
- Contact Resistance: Max 20 milliohms
- Insulation Resistance: Minimum 500 megaohms at 500V DC
- Current Rating: 1.5A per contact
- Voltage Rating: 125V AC
- Operating Temperature Range: -55°C to +85°C
- Number of Positions: 8
- Number of Contacts: 8
- Mounting Type: Through-hole
- Durability: Rated for 750 mating cycles
- Soldering Temperature: Max 260°C for 5 seconds
- Dimensions: Standard modular jack size with recommended PCB layout
Buy the Amphenol RJE37-188-04A0 – Reliable Modular Jack for Industrial Applications
Purchase your Amphenol RJE37-188-04A0 modular jack online today and enhance your communication and networking systems with this durable, easy-to-mount solution. Designed with a high-quality thermoplastic housing, gold-plated contacts, and rated for 750 mating cycles, this low-profile connector ensures reliable performance in industrial environments. Its compact size fits standard PCB layouts, supporting temperatures from -55°C to +85°C, making it ideal for the toughest applications. Secure your supply chain by buying this versatile modular jack now!
Order your Amphenol Series RJE37-188-04A0 modular jack today and ensure dependable networking connections for your industrial projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS RJE3718804A0?
You can click on the BUY or RFQ button to purchase RJE3718804A0 from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part RJE3718804A0?
You can download the RJE3718804A0 datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of RJE3718804A0?
AMPHENOL COMMUNICATIONS SOLUTIONS
