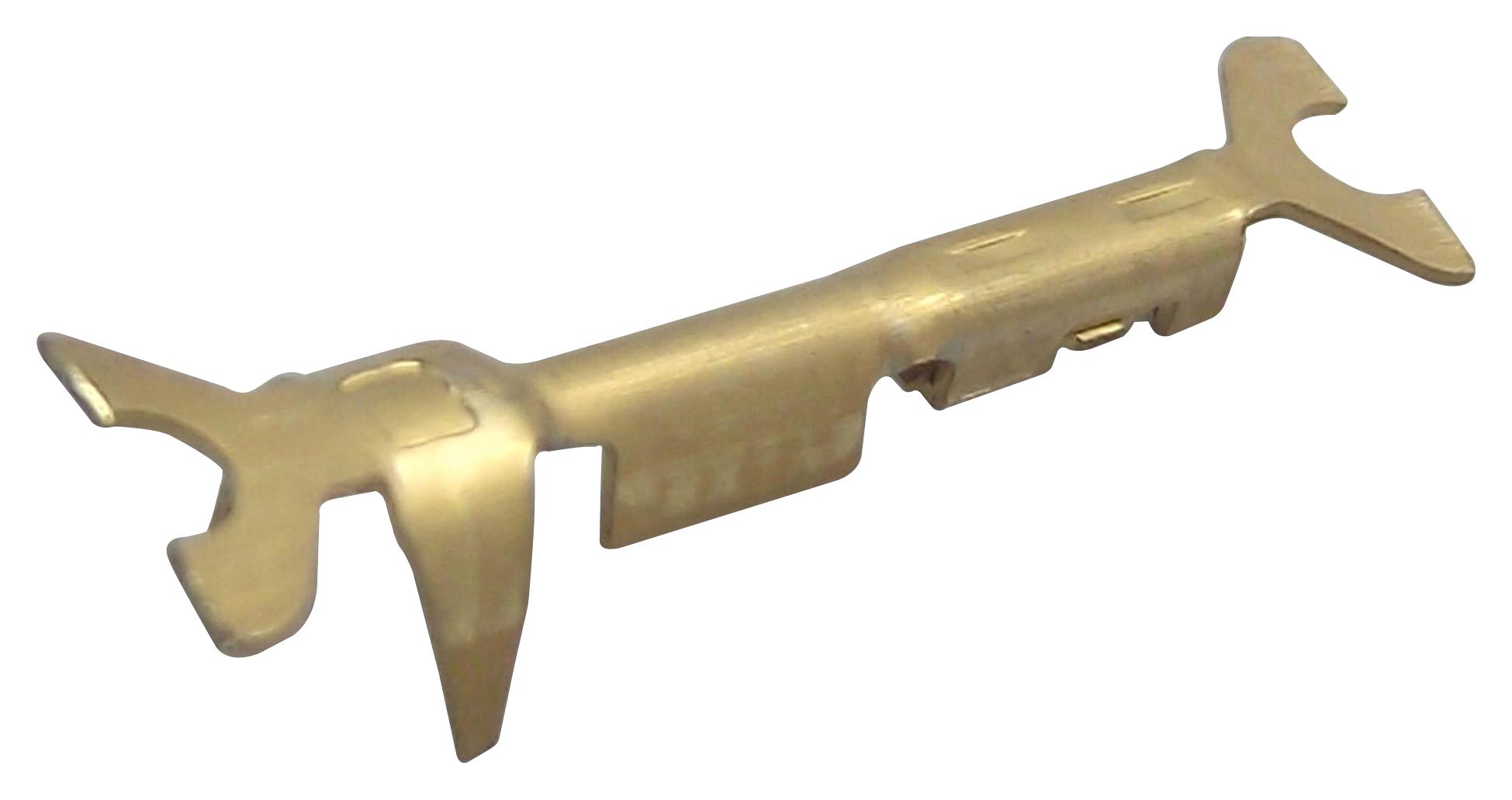

AMPHENOL COMMUNICATIONS SOLUTIONS 47439000LF Wire-to-Board Connector
The PV Wire-to-Board Connector System by Amphenol ICC offers a reliable, high-performance connection solution suitable for industrial, automotive, and consumer electronics. Featuring dual-metal PV receptacle contacts, beryllium copper springs, and polarized MINI-LATCH housings, this modular system ensures durability up to 1000 mating cycles. It provides high normal force at the mating interface, gas-tight crimps, and customizable insertion and withdrawal forces, all within a temperature range of -40°C to +105°C. Compliant with RoHS, it guarantees safety and environmental standards for demanding applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 47439000LF Wire-to-Board Connector Specifications:
- Contact Material: Brass body and beryllium copper spring
- Contact Plating: Gold or lead-free pure tin over nickel
- Housing Material: Modified polyphenylene oxide UL94V-0 (MINI-LATCH), Glass filled nylon UL94V-0 (Headers)
- Current Rating: 3.0A per circuit with 32 AWG wire
- Withstanding Voltage: 1000V RMS
- Insulation Resistance Wire Connector: >10000MQ
- Insulation Resistance PCB Header: >5000MQ
- Contact Resistance: <2mQ
- Temperature Range: -40°C to +105°C
- Durability: 1000 mating cycles
- Certifications: UL, CSA, RoHS compliant
Buy the Buy Amphenol PV Wire-to-Board Part Number 47439000LF Online
Experience the robust performance of the Amphenol PV Wire-to-Board Connector System, engineered for demanding industrial, automotive, and consumer applications. This modular connector offers high durability, with up to 1000 mating cycles, excellent electrical performance, and reliable gas-tight crimps. Its polarized design prevents mismatches, ensuring correct connections every time. Made with high-quality materials like brass and beryllium copper, and compliant with RoHS standards, it provides a safe, environmentally friendly solution. Perfect for high-density wiring needs, it simplifies assembly and maintenance for professionals seeking excellence and longevity in electronic connectivity.
Get Amphenol PV wire-to-board connector today—built for high cycle durability, reliability, and environmental safety in demanding industrial applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 47439000LF?
You can click on the BUY or RFQ button to purchase 47439000LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 47439000LF?
You can download the 47439000LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 47439000LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
